Product Overview

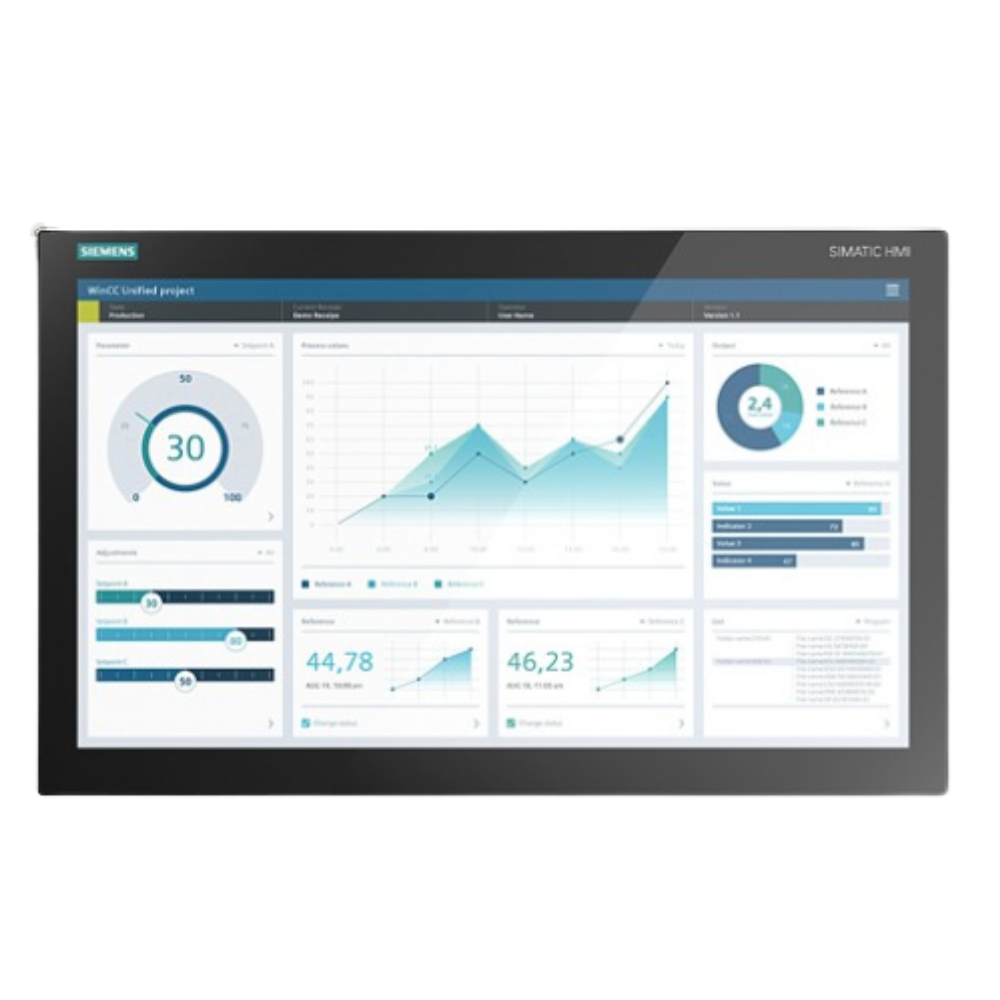

SIMATIC HMI MTP1500 Unified Comfort Panel – 15.6″ Touch (6AV2128-3QB06-0AX1)
An advanced Human-Machine Interface panel featuring a widescreen 15.6″ TFT touch display with 16 million colors. Equipped with PROFINET and configurable via WinCC Unified Comfort V16, this panel includes open-source software on the enclosed DVD for flexible industrial control and visualization.

Technical Specifications
Attribute Details
Display Type TFT touchscreen, multi-touch
Screen Size 15.6″ widescreen
Resolution 1366 × 768 pixels
Color Depth 16 million colors
Backlighting LED; dimmable 10–100%, MTBF ~50,000 h
Supply Voltage 24 V DC (19.2 V – 28.8 V)
Current Consumption Rated 0.7 A; max 1.3 A; Inrush I²t 0.5 A²·s
Clock Hardware and software clocks, retentive (~6 weeks), syncable
Memory Flash and RAM onboard
Interfaces 2 Industrial Ethernet (switch ports + independent); 1 RS-422/485; 4 USB 3.1 Gen 1 Type-A; 2 SD slots
Industrial Ethernet PROFINET support; MRP media redundancy; LEDs for status
Protocols Supported TCP/IP, DHCP, SNMP, DCP, LLDP
Protection Class IP65 front; IP20 rear; NEMA Type 4x / 12 at front
Operating Approvals CE, UKCA, cULus (Class I & II Division 2), RCM, KC, CCC, EAC, ABS, BV, DNV, KRS, LRS, NK, CCS
Ambient Temperatures Operation: 0 °C – 50 °C (portrait: up to 40 °C); Storage: –20 °C to +60 °C
Languages Supported Up to 32 online/runtime and per-project languages
Engineering & Software Configurable via WinCC Unified Comfort Engineering and TIA Portal; supports Libraries, Web Browser, Media Player, Audit, Sm@rtServer, JavaScript, Task Planner, Collaboration, Alarm and Recipe Management
Dimensions (W × H × D) 398 mm × 257 mm × ~73 mm
Housing Material Aluminum front
Global Warming Potential ~274 kg CO₂-eq (Production: ~74.9 kg; Operation: ~211 kg; EoL: –13.3 kg)
Product Lifecycle & Ordering Info

Lifecycle Status: Active (PLM PM300)

Standard Lead Time: Approximately 1 day ex-works

Net Weight: 4.3 kg

Packaging Dimensions: 30 × 46 × 14 cm (1 piece per package)

Country of Origin: Germany

Export Control: AL: N / ECCN: 9N9999

RoHS Compliance: Since 23 April 2023

WEEE Take-Back: Yes

REACH (Art. 33) Duty to Inform: Contains silicic acid lead salt, Bisphenol A (BPA), lead, lead monoxide above 0.1% w/w (no risk assumed under proper use)
