Product Overview

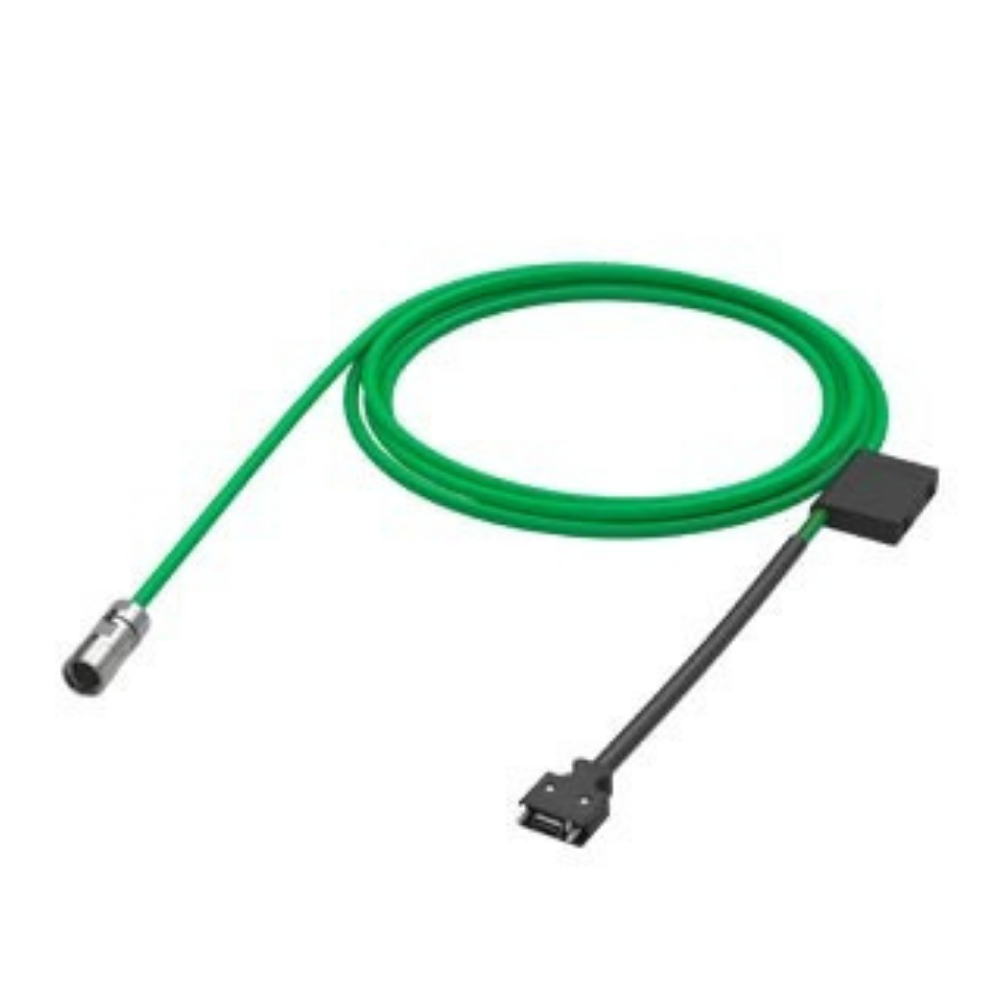

MOTION-CONNECT 300: Pre-assembled Signal Cable for Absolute Encoder – 6FX3002-2DB12-1AF0
A robust 5 m pre-assembled signal cable tailored for S-1FL6 servomotors with absolute encoders in the SINAMICS V90 drive system. Designed for streamlined integration and reliable signal transmission in demanding automation applications.

Siemens Industry Mall
+1

Key Technical Specifications

Cable Assembly: Pre-assembled cable for absolute encoders compatible with S-1FL6 LI SH50 motors.
Configuration: 3 × (2 × 0.20 mm²) + 2 × (2 × 0.25 mm²) cores.
Connector: Straight, suitable for motor-side with max connector diameter 7.2 mm.
Total length: 5 m.
Siemens Industry Mall
Parmley Graham
RS Components

Mechanical Robustness:

Smallest bending radius: 155 mm (flexible installation); 6 × cable diameter (fixed installation)

Maximum bend cycles: 1,000,000

Tensile stress: 50 N/mm² (flexible), 20 N/mm² (fixed)

RS Components

Electrical:

Rated voltage U₀/U: 30 V / 30 V per EN 50395

Test voltage (RMS): 500 V (power conductors)

RS Components

Material & Protection:

Sheath: PVC, flame-resistant (EN 60332-1-1 to -1-3), oil-resistant (EN 60811-2-1)

Degree of Protection: IP65

UL Approval: Not available

RS Components

Lifecycle & Logistics

Lifecycle Status: Active product, with phase-out scheduled from October 1, 2025.
Siemens Industry Mall
+1

Lead Time (Ex-works):

KR region: 15 days

WW region: 22 days
Siemens Industry Mall
+2
Siemens Industry Mall
+2

Net Weight: 0.420 kg (approx.)
Siemens Industry Mall
+1

Packaging Dimensions: 500 × 500 × 80 mm (L × W × H)
Siemens Industry Mall
+1

Country of Origin: China
Siemens Industry Mall
+1

Compliance & Classification

RoHS: Compliant since June 2, 2017
Siemens Industry Mall
+1

WEEE: Take-back obligation applies (Yes/– varies by region)
Siemens Industry Mall
+1

REACH Article 33: Manufacturer will inform about SVHC presence as necessary; currently no listed SVHCs.
Siemens Industry Mall
+1

Classification Codes:

eClass 6/7/8/9/9.1: 27-06-18-01

ETIM 7/8/9: EC003249

UNSPSC: 26-12-16-09
Siemens Industry Mall
+1

Engineering Insights

Durable & Flexible: With up to one million bend cycles and rugged cable construction, this signal cable holds up under high-dynamic motion environments.

Safety & Resilience: Flame- and oil-resistant PVC sheath meets stringent safety standards, while IP65 protection ensures suitability in harsh industrial settings.

Optimal Integration: Pre-assembled design and standard connector compatibility (Dmax 7.2 mm) minimize installation time and reduce wiring complexity.

Phase-out Planning: Given the scheduled phase-out from October 2025, it’s advisable to assess inventory and consider alternatives for long-term automation projects.

Suggested Product Page Description

MOTION-CONNECT 300 Signal Cable for Absolute Encoders – 5 m (6FX3002-2DB12-1AF0)
Ensure reliable and high-integrity signal transmission in your SINAMICS V90 drive system with this pre-assembled motion-grade encoder cable. Featuring 3 × 2 × 0.20 mm² and 2 × 2 × 0.25 mm² cores with a straight connector, it’s engineered for S-1FL6 motors with tight bending tolerance and robust construction.

Key Features

5 m pre-wired assembly for fast deployment

High flex endurance: 1 million bends; small bend radius

Rated 30 V with 500 V test overvoltage immunity

Flame- and oil-resistant PVC sheath; IP65 rated, no UL certification

RoHS compliant; WEEE take-back applies; phase-out begins Oct 2025

Made in China; weight ~0.42 kg; packaged 500 × 500 × 80 mm

Logistics

Delivery: 15–22 days ex-works depending on region

Product classification: eClass 27-06-18-01 / ETIM EC003249 / UNSPSC 26-12-16-09
