Product Overview

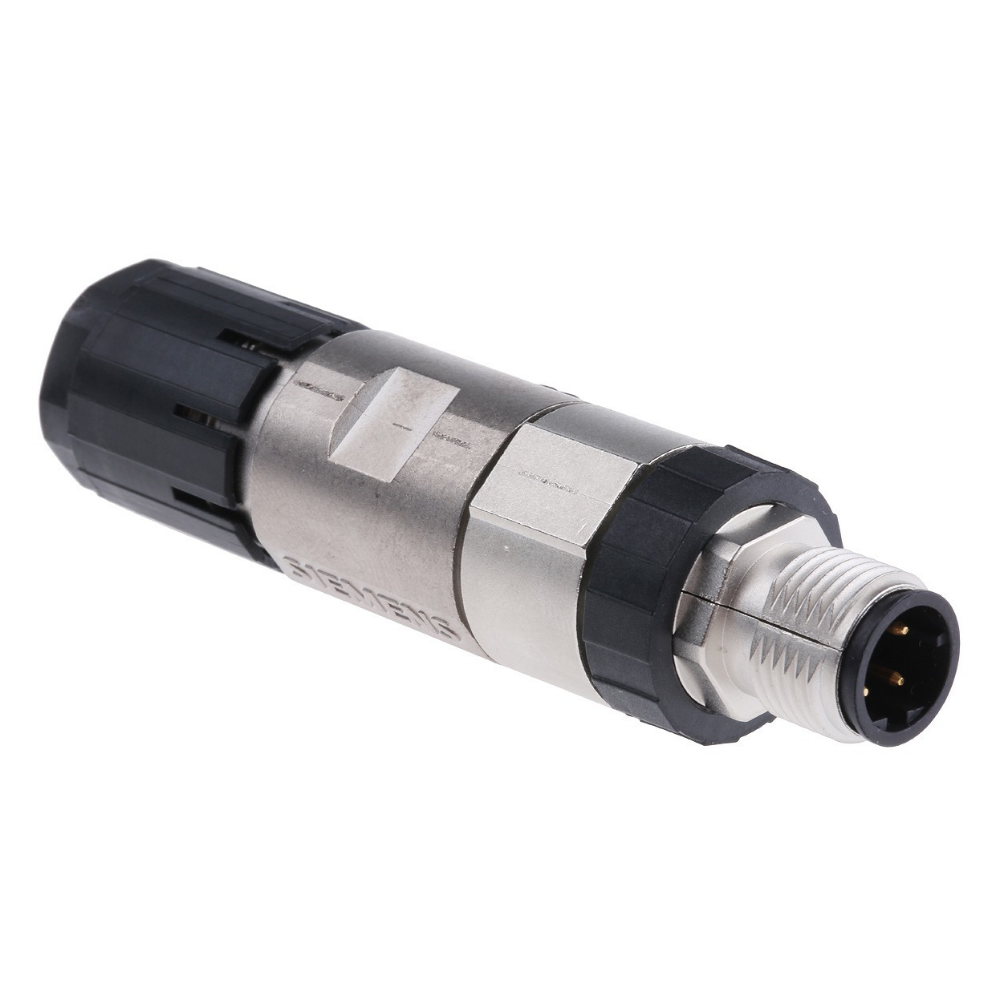

Industrial Ethernet FastConnect M12 Plug PRO 2×2 (D-coded) – 6GK1901-0DB20-6AA0
A rugged M12 plug connector designed for fast, secure assembly with FastConnect systems, compatible with SCALANCE X208 PRO, ET 200 PRO PN, and ET 200 eco PN modules. Engineered with a durable metal enclosure and axial cable outlet, this D-coded connector ensures reliable networking in industrial environments.
Siemens Industry Mall
Siemens Support

Technical Specifications
Attribute Details
Connector Type FastConnect M12 Plug PRO, D-coded, 4-pole
Compatible With SCALANCE X208 PRO, ET 200 PRO PN, ET 200 eco PN
Transmission Rate 10 Mbit/s and 100 Mbit/s
Cable Interface FastConnect cut-and-clamp for 4-wire TP cables (AWG 22)
Component Interface Standard M12 male D-coded
Enclosure Material Metal (robust, industrial-grade)
Cable Outlet Orientation Axial (180°)
Reusability Up to 10 mating cycles
Protection Rating IP65/IP67
Temperature Range –40 °C to +85 °C (operating, storage, transport)
PoE & PoE+ Support Yes (both supported)
Additional Feature Integrated strain relief
Weight & Dimensions ~40 g; 19 × 19 × 73 mm (W × H × D)
RS Components
Siemens Support

Environmental Product Declaration Yes; CO₂ equivalent total ~0.32 kg
Siemens Support
Product Lifecycle & Ordering Info

Lifecycle Status: Active (PLM: PM300)
Siemens Industry Mall

Lead Time: Typically 1 working day ex works
Siemens Industry Mall

Net Weight: 0.040 kg
Siemens Industry Mall

Packaging Dimensions: 2.80 × 8.60 × 2.70 cm
Siemens Industry Mall

Origin: Poland
Siemens Industry Mall

RoHS Compliance: Since July 30, 2008
Siemens Industry Mall

WEEE Take-Back: Not applicable
Siemens Industry Mall

REACH (Art. 33): No current SVHC found
Siemens Industry Mall
Electric Automation Network

Engineering Insight

Optimized for FastConnect Efficiency
Enables rapid, tool-free cabling with cut-and-clamp FastConnect design—significantly reducing setup time while ensuring secure and stable connections.

Industrial Durability
Built with a rugged metal housing and IP65/IP67 protection, it withstands exposure to dust, water, and harsh industrial conditions, ensuring long-term reliability.

Future-Ready Networking
Supports modern network requirements including PoE and PoE+, providing power-over-network capabilities for connected devices.

Wide Environmental Compatibility
Certified for a broad –40 °C to +85 °C temperature range and high humidity, making it ideal for demanding applications.

Sustainable Design
Backed by an Environmental Product Declaration with low carbon footprint (≈0.32 kg CO₂-eq), aligning with eco-conscious engineering practices.
