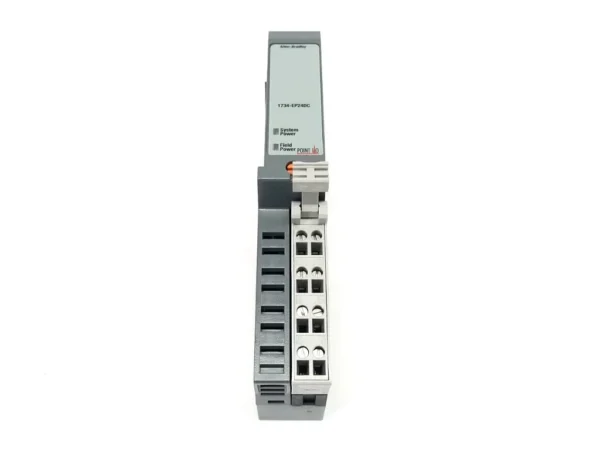

1734-EP24DC

Description Content

24V DC POWER/BUS EXTENSION MODULE.

Description: The Allen-Bradley 1734-EP24DC is a Point I/O expansion power supply. This module supports installation Four (4) to Seventeen (17) modules. It has an input voltage rating of 24VDC nominal with voltage range of 10-28.8VDC. This module provides POINTBus output Current of 1 A @ 10-19.2V input and 1.3 A @ 19.2-28.8V input for horizontal mounting and 1 A @ 10-28.8V input for vertical mounting.

Thermal Dissipation: 10 BTU/hour
Isolation Voltage: 50 Volts Continuous
Power Consumption: 9.8 Watts
Field Power: 24 Volts DC
Module Type: Expansion Power Supply
Series: POINT I/O
Part Number/Catalog No.: 1734-EP24DC
Brand: Allen-Bradley
Mounting: Horizontal / Vertical
Power Dissipation: 3 Watts
UPC: 10612598206879
Description Name

1734-EP24DC

Description Content

POINT I/O Extension Power Module
