Product Overview

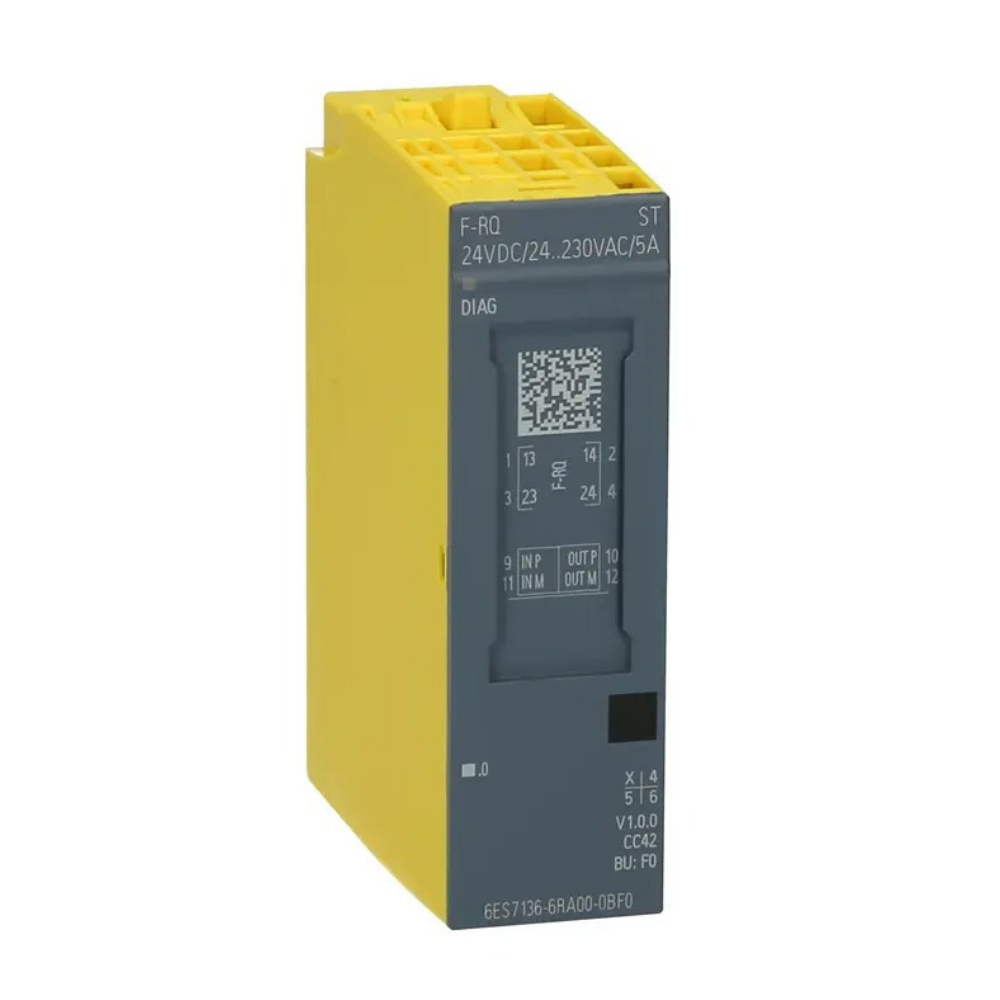

SIMATIC DP Electronics Module F-RQ – 1 Relay Output (6ES7136-6RA00-0BF0)
A compact fail-safe digital output module for the ET 200SP distributed I/O system, featuring a single relay output (2 NO contacts) rated for up to 5 A with a 20 mm width. Supports both 24 V DC and 24–230 V AC load voltages. Designed for high safety performance—capable of PL e / SIL 3 when used in combination with suitable fail-safe control modules.
Siemens Industry Mall
docs.tia.siemens.cloud

Technical Specifications
Attribute Details
Output Type 1 relay output (2 NO contacts)
Load Voltage 24 V DC (coil), load: 24 V DC / 24–230 V AC
Max Output Current 5 A total
docs.tia.siemens.cloud

Switching Frequency Resistive load max 2 Hz; Inductive max 0.1 Hz (DC13) / 2 Hz (AC15)
docs.tia.siemens.cloud

Safety Ratings PL e (ISO 13849-1), Category 4; SIL 3 (IEC 61508)
docs.tia.siemens.cloud

Power Supply Range 24 V DC, 20.4–28.8 V DC accepted
docs.tia.siemens.cloud

Power Consumption Backplane: 100 mW; Power loss typical 1 W
docs.tia.siemens.cloud

Address Space 1 byte input data
docs.tia.siemens.cloud

Diagnostics & Indicators LEDs: RUN (green/red), DIAG; channel status displayed
docs.tia.siemens.cloud

Mounting & Environment Standard DIN-rail mounting; 20 mm width, 56 g weight
docs.tia.siemens.cloud
NEX Instrument

Load Cable Length Max Shielded: 500 m; Unshielded: 300 m; Control cable: 10 m
docs.tia.siemens.cloud

Electrical Isolation Reinforced insulation 250 VAC; Isolation tested to 2545 V DC
docs.tia.siemens.cloud

Approvals Suitable for safety functions; UL 508 rated for Pilot Duty B300 / R300
docs.tia.siemens.cloud
NEX Instrument
Product Lifecycle & Ordering Info

Lifecycle Status: Active (PM300)
Siemens Industry Mall

Lead Time: Typically 1 day ex-works
Siemens Industry Mall

Net Weight: 0.067 kg
Siemens Industry Mall

Dimensions: 20 mm (width); packaging 6.8 × 8.0 × 2.9 cm
Siemens Industry Mall

Country of Origin: Germany
Siemens Industry Mall

RoHS Compliance: Since March 31, 2014
Siemens Industry Mall

WEEE Take-Back: Yes
Siemens Industry Mall

REACH (Article 33): Contains lead, lead monoxide, BPA above 0.1 % w/w—no expected risk under normal use
Siemens Industry Mall

Engineering Insight

Robust Fail-Safe Capability: With PL e/SIL 3 ratings when paired with suitable fail-safe logic modules, it’s engineered for maximum safety-critical systems.

High Load Flexibility: Supports both AC and DC loads up to 5 A with relay isolation—ideal for solenoid valves, contactors, or indicator lamps.

Compact, Efficient Design: Compact 20 mm-wide form and low power draw make it easy to incorporate into dense I/O installations.

Reliable Diagnostics: Clear LED indicators for operational and diagnostic states support maintenance and troubleshooting.

Environmentally Resilient: Long cable runs and reinforced insulation support integration in demanding industrial environments.
