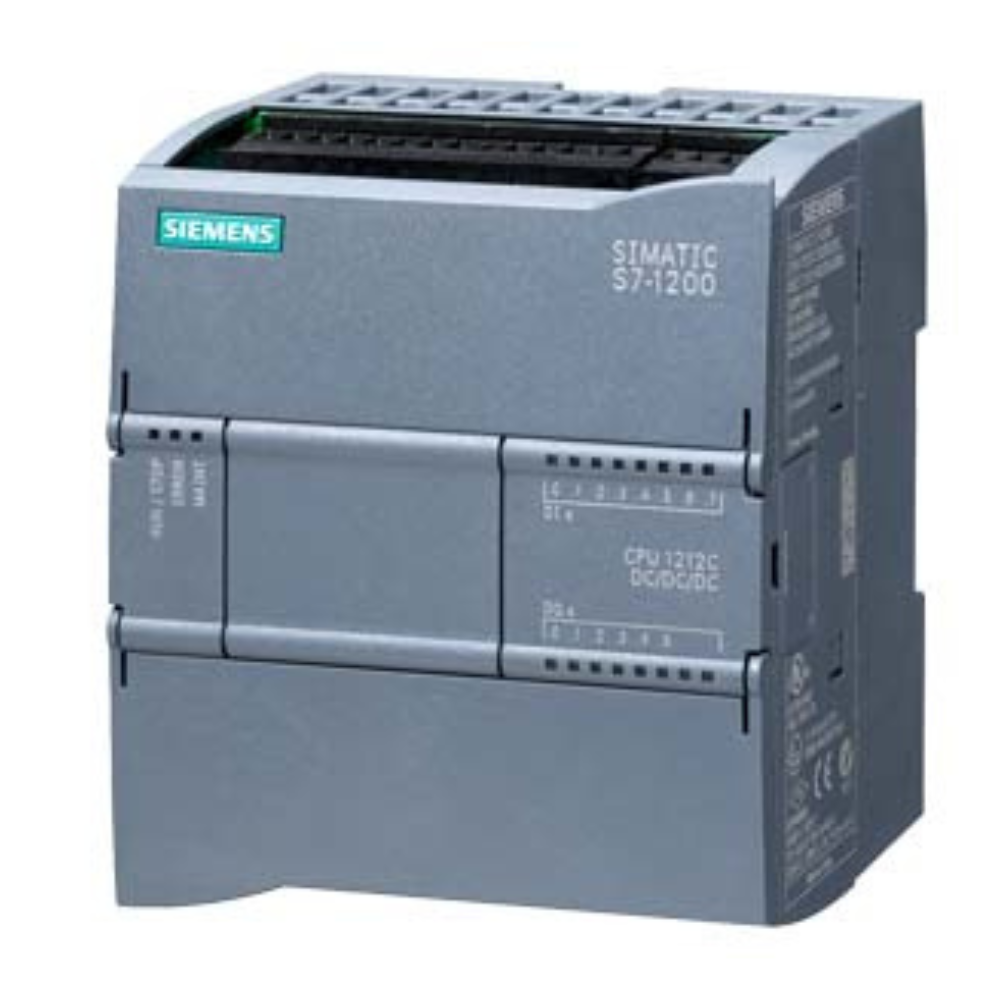

Siemens SIMATIC S7-1200 CPU 1212C (model 6ES7212-1AE40-0XB0) is a robust and versatile automation controller from the well-known S7-1200 family. It features onboard inputs and outputs in a compact form factor and supports modern industrial communication standards such as PROFINET. With integrated analog inputs, high-speed outputs and flexible programming options, this unit is ideal for a wide range of applications — from stand-alone machines to distributed control systems.

Key Features & Benefits

• On-board I/O including 8 digital inputs (24 V DC) and 6 digital outputs (24 V DC) — enabling immediate control without external modules. TME+1

• 2 analogue inputs (0 … 10 V DC) integrated — allowing direct measurement of analog signals (e.g., sensor values) without additional modules. TME

• Power supply range: 20.4 … 28.8 V DC (nominal 24 V DC) — suitable for most industrial DC supply systems. support.industry.siemens.com+1

• Compact memory and processing: e.g., integrated work memory ~75 kB (depending firmware) and fast instruction times for bit, word and floating-point operations. Cloudinary+1

• Communication interface: PROFINET (Ethernet) as Controller/Device, enabling integration into modern industrial networks. TME+1

• High-speed outputs (pulse train) available on the digital outputs for applications needing fast pulse/step control. TME

• Rugged industrial design: IP20 protection, shock/vibration tested, ambient temperature range down to –20 °C and up to +60 °C in certain mounting conditions. TME

Technical Specifications (at a glance)

• Product designation: CPU 1212C DC/DC/DC. Siemens SiePortal+1

• Supply voltage: 24 V DC (permissible range 20.4 … 28.8 V). support.industry.siemens.com+1

• On-board digital inputs: 8; on-board digital outputs: 6 (of which 4 support high-speed pulse output). DigiKey+1

• On-board analogue inputs: 2 (0 … 10 V). TME

• Memory: Load memory ~1 MByte, work memory ~75 kByte (depending version). Cloudinary

• Interface: PROFINET IO Controller/Device, max. transmission rate 100 Mbit/s. TME

• Dimensions approx: Width 90 mm, Height 100 mm, Depth 75 mm. Weight approx. 370 g. support.industry.siemens.com

• Protection rating: IP20. TME

Applications

• Ideal for compact machine control or modular systems where space is limited but advanced control is required.

• Suitable for analog sensor integration, pulse/step drive control (via high-speed outputs) and networked automation with PROFINET.

• A good fit for industrial automation, packaging machines, material handling, small production lines, and supervisory control within larger systems.

Why Choose this CPU?

• Provides a strong feature-set in a compact footprint — reducing panel space and wiring complexity.

• Direct onboard analog capabilities and high-speed outputs mean fewer add-on modules and lower cost.

• Siemens’ S7-1200 platform offers proven reliability, extensive ecosystem (modules, software, HMI) and strong support.

• Efficient commissioning via Siemens’ engineering software (STEP 7) and compatibility with modern automation protocols.

What to Consider

• Ensure your system supply is within the specified DC voltage range (20.4 … 28.8 V) and that wiring meets industrial standards.

• While the device offers onboard I/O, if your system has large I/O counts or specialized modules, incorporate expansion modules accordingly.

• For networked systems, plan your topology for PROFINET and ensure correct configuration and addressing.

• Check ambient conditions (temperature, mounting orientation) and clearances to maintain performance and lifetime.
