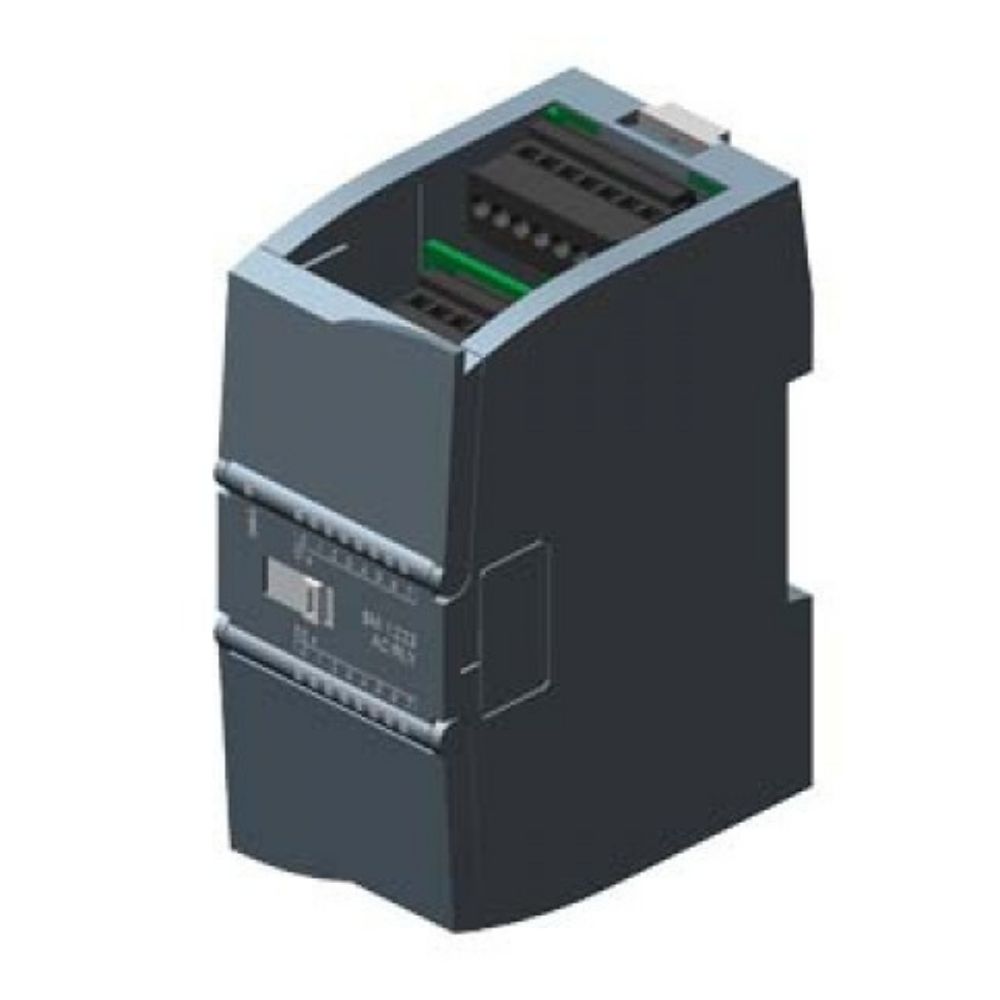

The SM 1231 module, part number 6ES7 231-4HD32-0XB0, seamlessly expands the SIMATIC S7-1200 PLC by adding four differential analog inputs. It supports both voltage and current signals, delivering precise and reliable analog data critical for modern automation systems.
Siemens Support
Siemens Totally Integrated Automation

Key Technical Specifications
Feature Specification
Inputs 4 differential analog inputs, configurable in groups of two as voltage or current
Siemens Support
Siemens Totally Integrated Automation

Supported Ranges Voltage: ±10 V, ±5 V, ±2.5 V
Current: 0–20 mA, 4–20 mA
Siemens Support
Siemens Totally Integrated Automation

Resolution 12 bits + sign (13-bit ADC)
Siemens Support
Siemens Totally Integrated Automation

Accuracy ±0.1 % at 25 °C; up to ±0.2 % across –20 to +60 °C of full scale
Siemens Support

Conversion Time ≤ 625 µs for all channels
Siemens Support

Input Impedance Voltage ≥ 9 MΩ; Current ~280 Ω
Siemens Support
Siemens Totally Integrated Automation

Overload Protection Voltage max: ±35 V; Current max: ±40 mA
Siemens Support

Noise Rejection 40 dB suppression from DC to 60 Hz; Supports 10/50/60/400 Hz filtering
Siemens Support
Siemens Totally Integrated Automation

Input Filtering Parameterizable: None, Low, Medium, High smoothing
Siemens Support
Siemens Totally Integrated Automation

Diagnostics Smart alerts: Overflow/Underflow, 24 V supply low, open-wire detection (in 4–20 mA mode), status LEDs
Siemens Support

Power & Consumption From 24 V DC: ~45 mA
From SM-bus (5 V): ~80 mA
Power loss: ~1.5 W
Siemens Support

Mechanical Specs Size: 45 × 100 × 75 mm (W×H×D); Weight: ~180 g
Siemens Totally Integrated Automation

Environmental Conditions Operating: –20 °C to +60 °C (horizontal); –20 °C to +50 °C (vertical). Storage: –40 °C to +70 °C. Humidity: ≤95 % non-condensing. Free-fall: ≤0.3 m in packaging
Siemens Support

Certifications IP20, CE, UL/cULus, CSA, FM, RCM, KC, Marine
Siemens Support

Cable Length Up to 100 m with shielded, twisted-pair wiring
Siemens Totally Integrated Automation

Wiring Connector Gold-plated front connectors (X10/X11) for 24 V and input channels; see module wiring diagrams
Siemens Totally Integrated Automation
Engineering Highlights

Flexible Analog Interfacing: Supports both voltage and current inputs, configurable in pairs—ideal for diverse sensor and instrumentation compatibility.

High-Resolution Precision: With 13-bit ADC and minimal temperature drift, suitable for accurate process monitoring.

Fast, Filtered Response: Rapid conversion times paired with adjustable noise filtering allow agile yet stable readings.

Comprehensive Diagnostics: Onboard features and LED indicators simplify troubleshooting and enhance operational safety.

Compact and Energy-Efficient: Slim form factor and low energy draw maintain efficient panel space utilization.

Rugged and Certified: Meets industrial ruggedness standards and safety certifications for reliable field deployment.

Ideal Applications

Industrial analog signal collection: temperature, pressure sensors, flow transmitters.

Process control loops requiring fine-scale analog precision.

Retrofits or expansions in S7-1200 systems needing analog inputs without extra amplifiers.

Long-distance signal acquisition in industrial environments—up to 100 m runs.

Summary

The SM 1231 4-channel Analog Input Module (6ES7 231-4HD32-0XB0) offers versatile, high-precision analog acquisition for SIMATIC S7-1200 systems. It’s engineered for flexible signal handling, built-in diagnostics, and efficient space and power usage—making it a robust addition for modern industrial automation.
