Product Overview

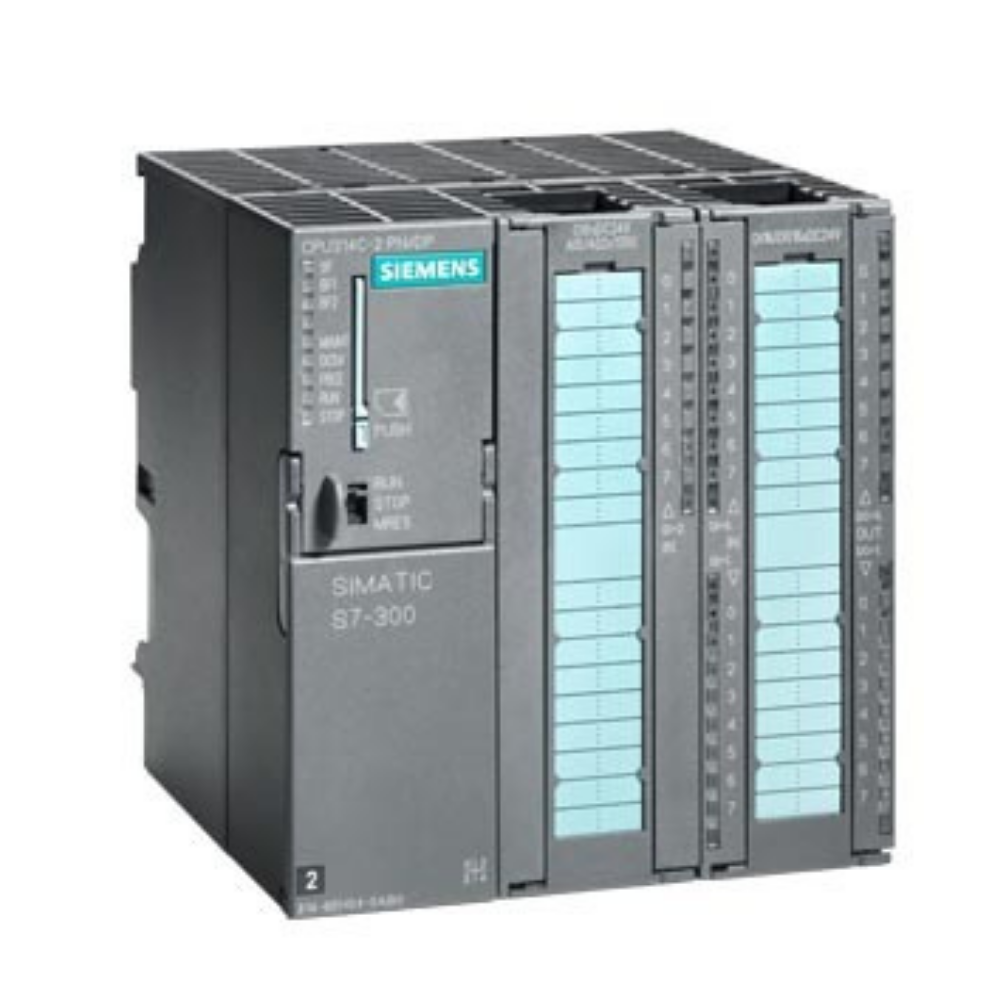

SIMATIC S7-300 CPU 314C-2 PN/DP Compact CPU (6ES7314-6EH04-0AB0)
A compact yet powerful central processing unit in the S7-300 series—offering 192 KB of integrated work memory, versatile I/O, and dual network interfaces (MPI/DP and Ethernet PROFINET), complete with a built-in 24 V DC power supply. A Micro Memory Card is required for operation.
Siemens Industry Mall
Siemens Support

Technical Specifications
Attribute Details
Work Memory 192 KB, integrated (not expandable)
Siemens Support

Digital Inputs (DI) 24 channels (24 DI)
Siemens Industry Mall
Siemens Support

Digital Outputs (DO) 16 channels (16 DO)
Siemens Industry Mall
Siemens Support

Analog Inputs (AI) 4 channels
Siemens Industry Mall
Siemens Support

Analog Outputs (AO) 2 channels
Siemens Industry Mall
Siemens Support

Temperature Sensor Input 1 × Pt100 channel
Siemens Industry Mall
Siemens Support

High-Speed Counters 4 counters, up to 60 kHz
Siemens Industry Mall
Siemens Support

Interface 1 MPI/DP at 12 Mbit/s
Siemens Industry Mall
Siemens Support

Interface 2 Ethernet PROFINET with 2-port switch, supports isochronous mode
Siemens Support

Power Supply Integrated 24 V DC (19.2–28.8 V range)
Siemens Support
Siemens Industry Mall

Power Consumption Rated ≈ 850 mA; no-load ≈ 190 mA; Inrush current ≈ 5 A, I²t ≈ 0.7 A²·s
Siemens Support
RS Components

Power Loss Typical 14 W
Siemens Support
RS Components

Processing Times Bit ops: ~0.06 µs; Word ops: ~0.12 µs; Fixed-point: ~0.16 µs; Floating-point: ~0.59 µs
Siemens Support

Block Capacity Up to 1024 blocks each for DB, FC, FB; includes defined OBs for errors, startup, alarms, etc.
Siemens Support

Backup & Memory Uses Micro Memory Card (MMC) up to 8 MB; retains data ≥ 10 years; no battery required
Siemens Support
RS Components

Expansion Capabilities Up to 3 expansion units; includes 1 DP master; supports up to 4 racks with max 8 modules each
Siemens Support

Clocks & Backup Hardware real-time clock, retentive and syncable, backup up to ~6 weeks @40 °C
Siemens Support

PROFINET Features Acts as IO Controller and Device, web server, routing, media redundancy, IRT support
Siemens Support

Isolation Standard Tested to 600 V DC
Siemens Support

Ambient Operating Temperature 0 °C to 60 °C
Siemens Support
Product Lifecycle & Ordering Info

Lifecycle Status: Active, but phase-out announced since October 1, 2023
Siemens Industry Mall
Electric Automation Network

Standard Lead Time: ~1 day ex-works
Siemens Industry Mall
Electric Automation Network

Net Weight: ~0.785 kg
Siemens Industry Mall

Packaging Dimensions: 13.4 × 15.3 × 12.7 cm
Siemens Industry Mall

Country of Origin: Germany
Siemens Industry Mall

Export Control: AL: N / ECCN: EAR99H
Siemens Industry Mall

RoHS Compliance: Since September 13, 2011
Siemens Industry Mall

WEEE Take-Back: Applicable
Siemens Industry Mall

REACH (Art. 33) substances: Contains several candidates (e.g. lead, lead monoxide, lead salt, BPA, PFBS) above 0.1% w/w; no expected risk if used/disposed properly
Siemens Industry Mall

Classification Codes: eClass, ETIM, UNSPSC categories available
Electric Automation Network
Siemens Industry Mall

Engineering Insight

All-in-One Control Module
This Compact CPU integrates digital, analog, and temperature IO with high-speed counters and extensive PLC block support—ideal for centralized control tasks with compact design.

Advanced Networking
Dual interfaces (MPI/DP and Ethernet PROFINET) offer flexibility—suitable for traditional PROFIBUS setups or modern real-time PROFINET networks with web and routing functionalities.

Robust Automation Performance
Supports fast execution of logic, floating-point, and bit operations; Micro Memory Cards allows long-lasting, battery-free project memory.

Scalable Architecture
Supports rack expansion, DP master capabilities, and various OB/FC/FB configurations—making it flexible for growing automation systems.

Lifecycle Planning
Although still available, planning for a replacement is advisable, since phase-out began in October 2023. Good stock management ensures seamless transitions for long-term deployments.
