M12 female 90° A-cod. with cable
Overview

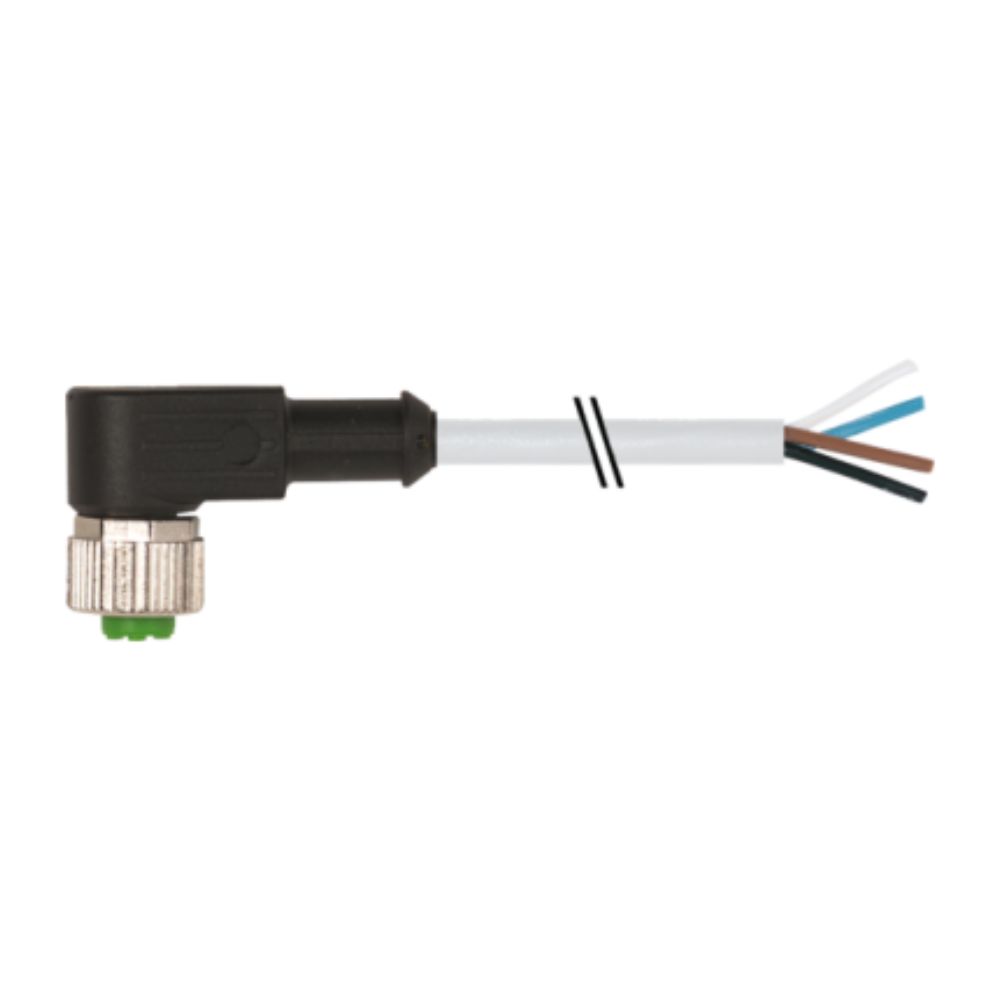

The 7000-12341-2140500 is a pre-terminated right-angle (90°) M12 female A-code connector cable, featuring 4 cores and a 5 m PVC jacket. Designed for general signal and sensor wiring in industrial automation, this cordset streamlines installation by avoiding field termination and ensuring reliable signal transmission. Murrelektronik Shop+2Mouser Electronics+2
Key Technical Specifications & Features
| Parameter | Specification |
|---|---|
| Connector Type | M12 female, 90° (A-code), 4 poles galco.com+3Murrelektronik Shop+3Mouser Electronics+3 |
| Cable Construction | 4 × 0.34 mm² (AWG ~22), PVC insulation, gray jacket Mouser Electronics+3Murrelektronik Shop+3MISUMI+3 |
| Length | 5 m (fixed) Murrelektronik Shop+2Mouser Electronics+2 |
| Voltage / Current Rating | Up to 250 VAC / 250 VDC; typically up to 4 A per conductor in signal applications galco.com+2Mouser Electronics+2 |
| Protection / Ingress | Rated IP65 / IP66K / IP67 when mated and properly tightened MISUMI+2Mouser Electronics+2 |
| Mechanical & Environmental | PVC jacket offers moderate chemical, oil resistance; temperature range typical for fixed wiring (around –30 °C to +80 °C) MISUMI+2Mouser Electronics+2 |
| Weight | Approx. 0.214 kg Murrelektronik Shop |
Benefits & Applications
-
Plug-and-Play Wiring: Eliminates the need for field crimping or soldering, reducing installation errors and time.
-
Compact & Rugged Design: Right-angle connector saves space in tight panel layouts or mounting brackets.
-
Reliable Signal Transmission: Suitable for sensor, actuator, or general signal wiring in industrial systems.
-
Industry Compatibility: Follows standard M12 A-code pinout, making it broadly compatible with sensors, PLCs, and automation I/O modules.
Typical uses include sensor wiring, control panel interconnections, signal cables for industrial equipment, and cabling in factory automation installations.
