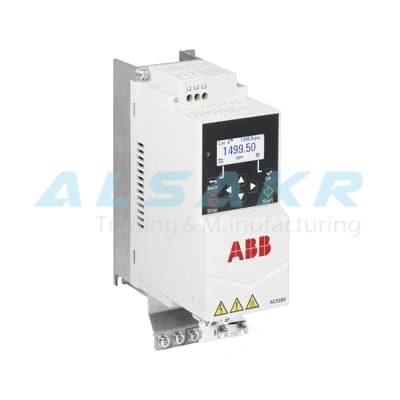

Introducing the ABB ACS180‑04S‑033A‑4, a high-efficiency IP20 machinery drive from the ACS180 series. With IEC-rated 15 kW output at 400 V and 32 A continuous current, or 20 hp at 460 V UL rating, this compact vector inverter delivers high performance with dual-mode control (V/f and sensorless vector), integrated safety, and industrial-grade EMC filtering—making it a versatile solution for a wide range of OEM and machine applications media.goelectrical.com.au+10ABB Group+10Inverter Drive Supermarket+10.

📊 Electrical & Control Performance

• Voltage Range: 380–480 VAC three-phase (47–63 Hz compliance) ABB Groupelectgo.com

• Output Power: 15 kW (32 A) at 400 V IEC; 20 hp (27 A) at 460 V UL electgo.com

• Overload: Light-duty – 110% (30.5 A) for 60 s; Heavy-duty – 150% (25 A) for 60 s; Peak current 45 A start-up TME+2Inverter Drive Supermarket+2wistexllc.com+2

• Frequency Range: 0–599 Hz for full application flexibility ABB Groupelectgo.com

• Control Modes: Variable-frequency (V/f) and sensorless vector control—suitable for induction and permanent-magnet motors Industry-Electronics+2Inverter Drive Supermarket+2Switchboard Solutions+2

🛡 Safety & Standards

• EMC Compliance: Built-in industrial-grade filter meets EN 61800‑3, category C3 (up to 10 m cable); wire earth screw included media.goelectrical.com.au+7ABB Group+7Inverter Drive Supermarket+7

• Integrated Safe Torque Off (STO): SIL 3 / PL e safety function eliminates requirement for external safety relays electgo.com+4Inverter Drive Supermarket+4Switchboard Solutions+4

• Thermal Design: Optimized for 40 °C (fan/pump duty) and up to 50 °C (heavy-duty) operation; allows side-by-side cabinet mounting Inverter Drive Supermarket

• Certifications: IEC/UL compliance with coated PCB and fault protection ensure industrial robustness TME+3jakelectronics.com+3TME+3

🏗 Mechanical Features

• Frame & Mounting: R3 frame – 170 × 241 × 174 mm (W×H×D); ~3.3 kg; IP20 cabinet mounting with optional DIN-rail support electgo.com+2Inverter Drive Supermarket+2electgo.com+2

• Connectivity: Screw-type power terminals; spring-loaded control terminals include 2 AI, 1 AO, 4 DI (2 HF-capable), 1 DO, 1 relay output, RS‑485 Modbus RTU, and RJ45 for external keypad/PC tools Industry-Electronics+1Inverter Drive Supermarket+1

• Operator Interface: Fixed keypad included (remote and Bluetooth control options via ACS-AP series and Drivetune PC tool) Inverter Drive Supermarket+1jakelectronics.com+1

⚙️ Functional Highlights

• Dynamic Braking: DBr module supported; built-in brake switch; dynamic resistor required for full torque braking Inverter Drive Supermarket

• Adaptive Programming: Logic blocks (mini-PLC), icon-based user interface, Drive Composer entry for PC or Bluetooth setup Switchboard Solutions+2Industry-Electronics+2Inverter Drive Supermarket+2

• Efficiency & Losses:

  • Efficiency up to 96.9% @ 90 Hz, 100% torque

  • Standby loss ~23 W; heat loss ~551 W at full load Inverter Drive Supermarketelectgo.com+2electgo.com+2Inverter Drive Supermarket+2

  • Ecodesign IE2 classified ABB Group+5electgo.com+5Inverter Drive Supermarket+5

🎯 Application Scope

Ideal for medium-industrial use cases:

• Pumps, fans, compressors, conveyors, mixers, winders, and packaging systems

• OEM and machinery applications where compact size, integrated safety, and EMC compliance are required

• Shared architecture with other ABB drives for streamlined commissioning and scalability ipd.com.auIndustry-Electronics+6electgo.com+6Switchboard Solutions+6

✅ Summary & Benefits

• High performance in compact size: 15 kW power and vector control in an IP20 frame

• All-in-one design: Integrated STO, C3 EMC filter, dynamic braking, and operator interface—minimizing external hardware

• Efficient & eco-friendly: High efficiency, low losses, and IE2 rating for energy savings

• Flexible control & commissioning: Remote keypad, PC setup, Bluetooth, adaptive logic, and robust diagnostics

📦 Accessories & Options

• Operator Panels: ACS-AP-I/S/W (incl. Bluetooth)

• Brake Resistors: For full dynamic braking support

• Input Reactors & Filters: For extended cable runs or application-specific EMC requirements

• Mounting Kits: DIN-rail adapter, IP-rated flange kits

• Connectivity Tools: BCBL-01 USB to RJ45 cable
