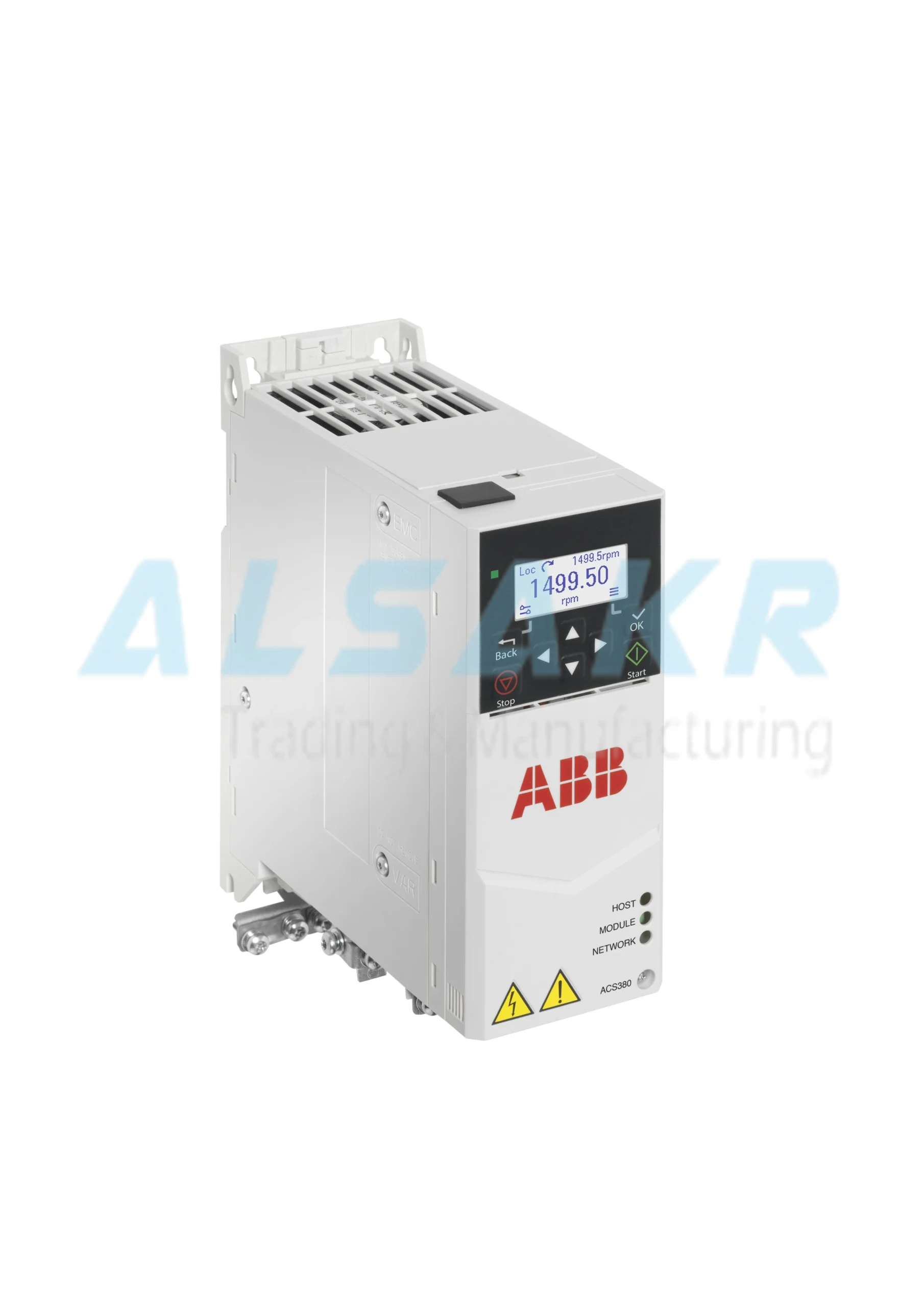

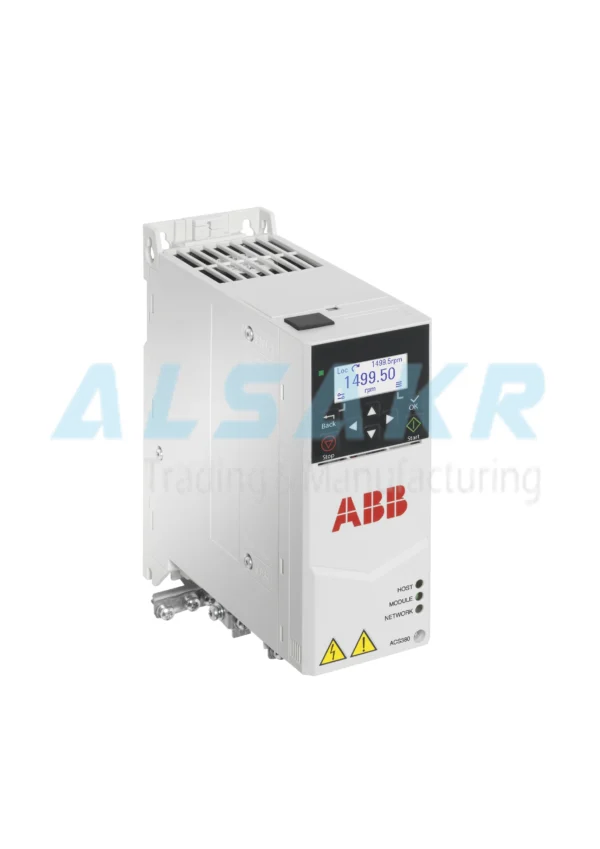

The ABB ACS380‑040S‑05A6‑4 is a compact and dependable IP20-rated low-voltage AC machinery drive. Designed for OEMs and control cabinets, it delivers 2.2 kW output at 5.6 A nominal current—perfect for conveyors, pumps, fans, mixers, and other constant-torque applications.

---

📌 Key Specs

• Power & Current

  • Nominal Power: 2.2 kW

  • Nominal Output Current: 5.6 A

  • Heavy-Duty (150 % overload): ~5.3 A

  • Light-Duty (110 % overload): ~4 A shiny-control.en.made-in-china.com+7elemro.com+7ABB Group+7ABB Group

• Input

  • Voltage: 3-phase, 380–480 VAC ±10%

  • Frequency: 50/60 Hz

• Output & Switching

  • Frequency Range: 0–599 Hz

  • Switching Frequency: Adjusts from 1–12 kHz (factory set ~4 kHz)

---

🛡️ Control & Safety Features

• Motor Control Modes: Supports V/F scalar control and sensorless vector control with excellent dynamic behavior.

• Safety: Includes built-in Safe Torque Off (STO), meeting SIL 3 / PL e performance levels.

• Brake Management: Compatible with external brake choppers and resistors (brake chopper sold separately).

---

🛠️ Mechanical & Environmental

• Mounting & Protection:

  • Frame: R0 (cabinet mount)

  • Enclosure Rating: IP20

• Cooling: Built-in fan for forced-air cooling

• EMC: EMC Class C3 (industrial)

• Operating Conditions: –10 °C to +50 °C ambient; contamination class 3C2

• Approx. Weight & Size: Lightweight and compact, ideal for tight control panels

---

🧩 Integration & Usability

• Interface: Built-in multi-language keypad with LCD

• Optional Modules: Slot for BMIO-01 offering flexible analog/digital I/O and Modbus RTU

• Programming Tools: Supports ABB Drive Composer and Bluetooth Drivetune mobile app

• Mounting Flexibility: Works with DIN-rail adapters or cab-mounted configurations

---

📂 Typical Applications

Ideal for small-scale equipment and machinery:

• Compressor and pump control

• Conveyor and feeder systems

• Fans, mixers, kneaders

• Light industrial OEM equipment

---

✅ Benefits & Key Highlights

1. Compact & Efficient: R0 frame fits limited spaces—perfect for OEM panels.

2. High Safety Compliance: Integrated STO for secure operation.

3. Flexible Motor Control: Offers both scalar and sensorless vector modes.

4. Robust Protection: Meets industrial EMC and environmental standards.

5. Straightforward Commissioning: Intuitive keypad, mobile app & fieldbus ready.

---

📚 Ordering & Documentation

• Part Number: 3ABD00045125

• ABB Designation: ACS380‑040S‑05A6‑4

• Product Materials: Includes hardware manuals and data sheets—refer to ABB’s official site or request through your local ABB representative.

---

🔍 Summary:
The ABB ACS380‑040S‑05A6‑4 offers OEMs and system integrators a compact, safe, and versatile 2.2 kW drive solution. With built-in safety features, easy setup, and robust motor control, it’s a solid pick for light-duty machinery requiring reliable and precise operation.
