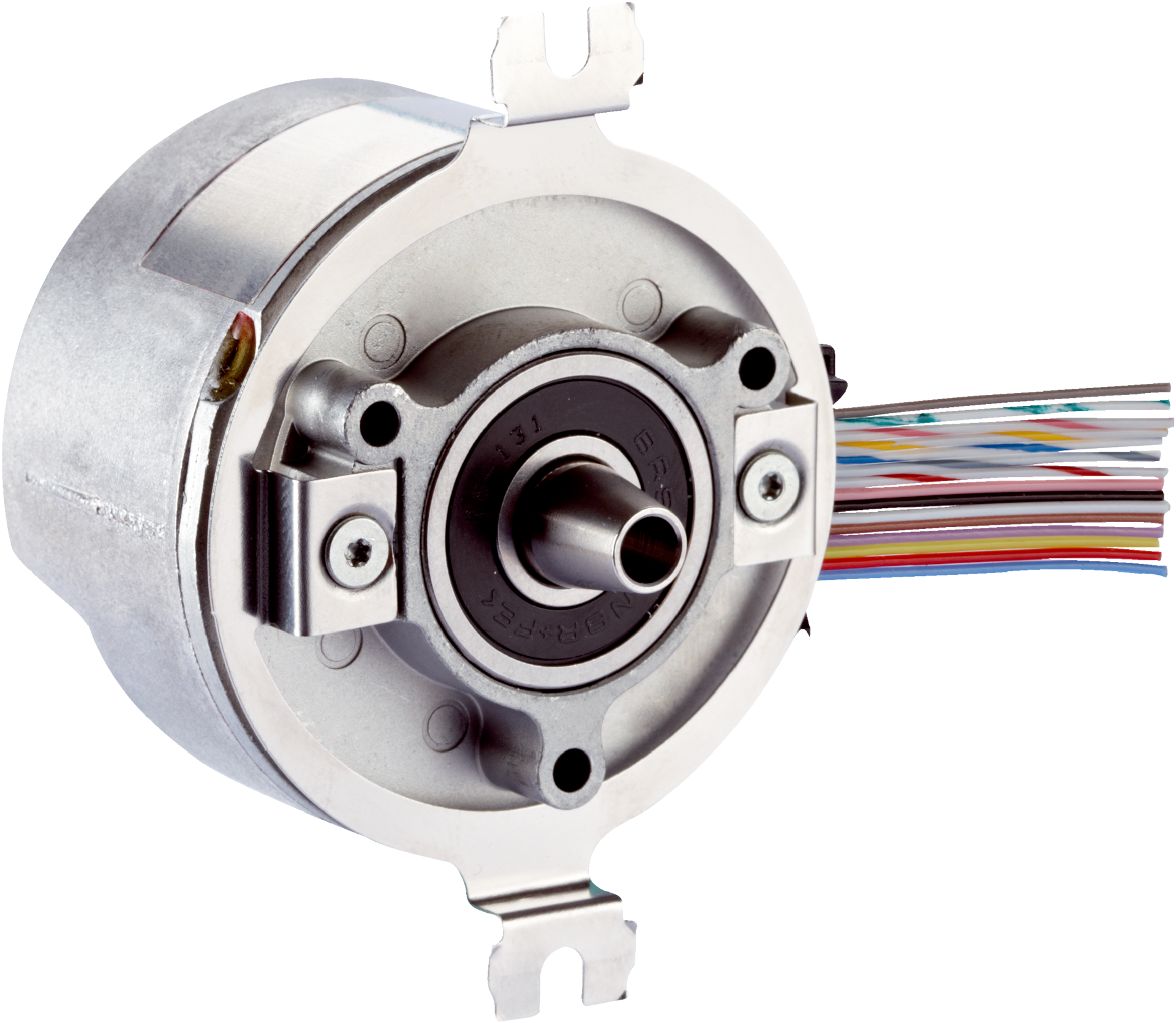

CFS50-AFV02X04 1065222 N/A SICK CFS50 > CFS50-AFV02X04 CE|RCM|UKCA
| Number of lines per revolution | 2,000 1) |
|---|---|
| Measuring step | 90° /number of lines |
| Commutation signals | 4 pole pairs (See diagram, different commutation on request) |
| Reference signal, number | 1 |
| Reference signal, position | 90° electric, logically gated with A and B |
| Operating speed | 12,000 min⁻¹ |
| Communication interface | Incremental |
| Connection type | Stranded wire, 15-pin, radial |
| Supply voltage | 4.5 V DC … 5.5 V DC |
| Current consumption | 60 mA 1) |
| Maximum output frequency | ≤ 820 kHz |
| MTTF: mean time to dangerous failure | 355 years (EN ISO 13849) 2) |
| Shaft version | Tapered shaft |
| Flange type / stator coupling | Spring mounting plate |
| Dimensions | See dimensional drawing |
| Weight | 0.1 kg |
| Moment of inertia of the rotor | 10 gcm² |
| Angular acceleration | ≤ 200,000 rad/s² |
| Operating torque | 0.2 Ncm |
| Start up torque | 0.4 Ncm |
| Permissible movement of the drive element, static | ± 0.5 mm radial± 0.75 mm axial |
| Permissible movement of the drive element, dynamic | ± 0.1 mm radial± 0.2 mm axial |
| Angular motion perpendicular to the rotational axis, static | ± 0.005 mm/mm |
| Angular motion perpendicular to the rotational axis, dynamic | ± 0.0025 mm/mm |
| Life of ball bearings | 3.6 x 109 revolutions |
| Operating temperature range | –20 °C … +115 °C |
| Storage temperature range | –40 °C … +125 °C, without package |
| Relative humidity/condensation | 90 %, Condensation not permitted |
| Resistance to shocks | 100 g, 10 ms (according to EN 60068-2-27) |
| Frequency range of resistance to vibrations | 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) |
| EMC | According to EN 61000-6-2 and EN 61000-6-3 1) |
| Enclosure rating | IP40 (IEC 60529) |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| ECLASS 5.0 | 27270501 |
| ECLASS 5.1.4 | 27270501 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270501 |
| ECLASS 8.0 | 27270501 |
| ECLASS 8.1 | 27270501 |
| ECLASS 9.0 | 27270501 |
| ECLASS 10.0 | 27273805 |
| ECLASS 11.0 | 27273901 |
| ECLASS 12.0 | 27273901 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
| header | value |
| Unit weight | 0.000 Kilograms |
| Net unit weight | 0 Kilograms |
| Unit volume | 0 Cubic Centimetres (cm³) |
| Country of origin | Hungary |
