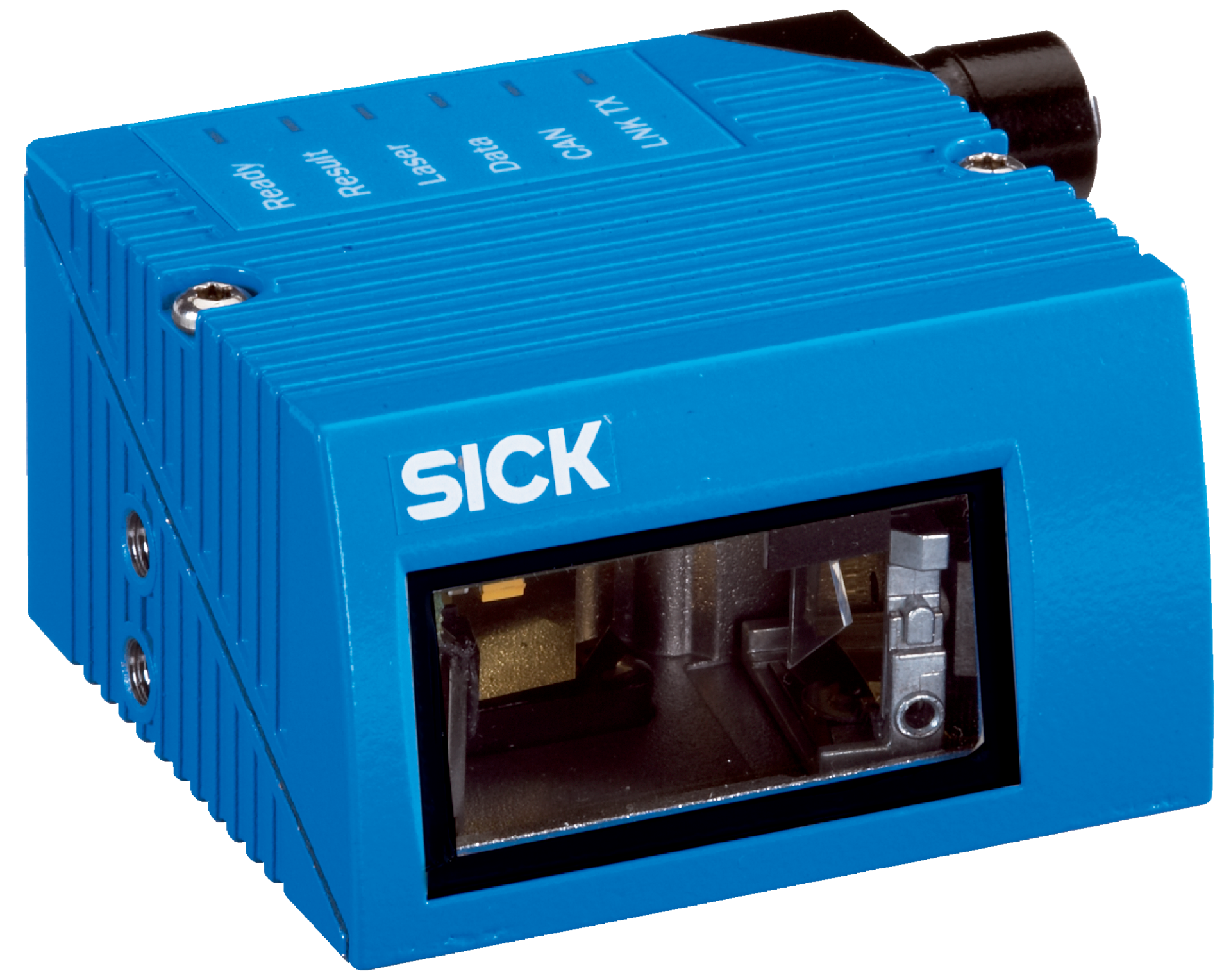

CLV620-0830 1050940 Fixed mount barcode scanners: CLV62x SICK Products Machine vision and identification Fixed mount barcode scanners > Machine vision and identification > Fixed mount barcode scanners > CLV62x > CLV620-0830 CE|cULus|RCM|UKCA
| Version | Mid Range |
|---|---|
| Connection type | 2 x M12 cylindrical connectors (1 x 17-pin male connector, 4-pin female connector) on swivel connector |
| Reading field | Front |
| Sensor type | Line scanner |
| Optical focus | Fixed focus |
| Light source | Light spot, laser, Visible, Red, 655 nm |
| Laser class | 2, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 56” from May 8, 2019 (EN 60825-1:2014+A11:2021, IEC 60825-1:2014) |
| Aperture angle | ≤ 50° |
| Reading distance | 60 mm … 365 mm 1) |
| Scanning frequency | 400 Hz … 1,200 Hz |
| Code resolution | 0.2 mm … 1 mm |
| Supply voltage | 10 V DC … 30 V DC |
| Power consumption | 4.5 W |
| Housing material | Aluminum die cast |
| Housing color | Light blue (RAL 5012) |
| Window material | Glass |
| Enclosure rating | IP65 (DIN 40 050) |
| Protection class | III (VDE 0106/IEC 1010-1) |
| Weight | 205 g, without connecting cable |
| Dimensions (L x W x H) | 61 mm x 66 mm x 38 mm 1) |
| MTBF | 100,000 h |
| MTTF | 40,000 h (Laser diode) 2) |
| Readable code structures | 1D codes |
| Bar code types | All current code types, Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey |
| Code printing process | Label (printed codes) |
| Print ratio | 2:1 … 3:1 |
| No. of codes per scan | 1 … 20 (Standard decoder)1 … 6 (SMART620) |
| No. of codes per reading interval | 1 … 50 (auto-discriminating) |
| No. of characters per reading interval | 1,500500 (for multiplexer function in CAN operation) |
| No. of multiple readings | 1 … 99 |
| Ethernet✔ , TCP/IPFunctionData interface (read result output), Service interfaceData transmission rate10/100 MBit/s | Ethernet |
| Ethernet | ✔ , TCP/IP |
| Function | SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server) |
| Data transmission rate | 20 kbit/s … 1 Mbit/s |
| PROFINET✔FunctionPROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600-2)Data transmission rate10/100 MBit/s | PROFINET |
| PROFINET | ✔ |
| EtherNet/IP™✔Data transmission rate10/100 MBit/s | EtherNet/IP™ |
| EtherNet/IP™ | ✔ |
| EtherCAT®✔Type of fieldbus integrationOptional over external fieldbus module CDF600 | EtherCAT® |
| EtherCAT® | ✔ |
| Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
| Serial✔ , RS-232, RS-422, RS-485FunctionData interface (read result output), Service interfaceData transmission rate2,400 Baud … 115.2 kBaud, AUX: 57.6 kBaud (RS-232) | Serial |
| Serial | ✔ , RS-232, RS-422, RS-485 |
| CAN✔FunctionSICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server)Data transmission rate20 kbit/s … 1 Mbit/s | CAN |
| CAN | ✔ |
| CANopen✔Data transmission rate20 kbit/s … 1 Mbit/s | CANopen |
| CANopen | ✔ |
| PROFIBUS DP✔Type of fieldbus integrationOptional over external fieldbus module CDF600-2 | PROFIBUS DP |
| PROFIBUS DP | ✔ |
| Digital inputs | 4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional parameter storage CMC600 in CDB620/CDM420) |
| Digital outputs | 4 (“Result 1”, “Result 2”, 2 outputs via optional parameter storage CMC600 in CDB620/CDM420) |
| Reading pulse | Digital inputs, non-powered, serial interface, auto pulse, CAN |
| Optical indicators | 6 LEDs (Ready, Result, laser, Data, CAN, LNK TX) |
| Acoustic indicators | Beeper/buzzer (can be switched off, can be allocated as a result indication function) |
| Configuration software | SOPAS ET |
| Electromagnetic compatibility (EMC) | EN 61000-6-3 (2001-10) / EN 61000-6-2:2005 |
| Vibration resistance | EN 60068-2-6 (1995) |
| Shock resistance | EN 60068-2-27 (1993) |
| Ambient operating temperature | 0 °C … +40 °C |
| Storage temperature | –20 °C … +70 °C |
| Permissible relative humidity | 90 %, Non-condensing |
| Ambient light immunity | 2,000 lx, on barcode |
| Bar code print contrast (PCS) | ≥ 60 % |
| ECLASS 5.0 | 27280102 |
| ECLASS 5.1.4 | 27280102 |
| ECLASS 6.0 | 27280102 |
| ECLASS 6.2 | 27280102 |
| ECLASS 7.0 | 27280102 |
| ECLASS 8.0 | 27280102 |
| ECLASS 8.1 | 27280102 |
| ECLASS 9.0 | 27280102 |
| ECLASS 10.0 | 27280102 |
| ECLASS 11.0 | 27280102 |
| ECLASS 12.0 | 27280102 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 43211701 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Ethercat certificate | ✔ |
| Profinet certificate | ✔ |
| BIS registration | ✔ |
| Laser safety (IEC 60825-1) declaration of manufacturer | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
| 4Dpro | ✔ |
| header | value |
| Unit weight | 0.330 Kilograms |
| Net unit weight | 0.33 Kilograms |
| Unit volume | 2916 Cubic Centimetres (cm³) |
| Country of origin | Hungary |
| EAN | 4047084225024 |
