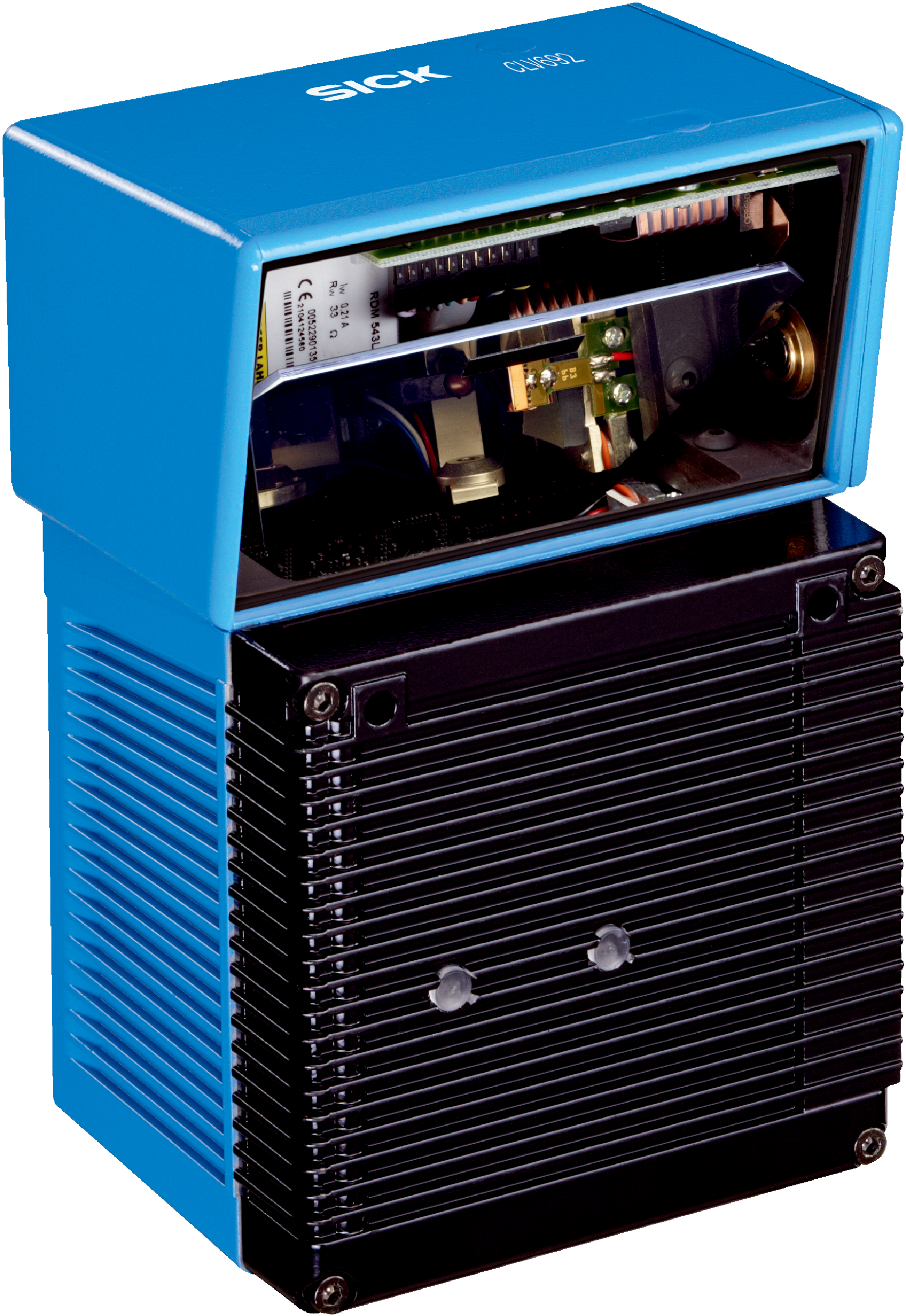

CLV692-1000 1056609 Fixed mount barcode scanners: CLV69x SICK Products Machine vision and identification Fixed mount barcode scanners > Machine vision and identification > Fixed mount barcode scanners > CLV69x > CLV692-1000 CE|cULus|RCM|UKCA
| Version | High Density |
|---|---|
| Connection type | Depending on the cloning plug used |
| Reading field | Oscillating mirror |
| Sensor type | Oscillating mirror |
| Optical focus | Auto focus (alternative: dynamic focus control) |
| No. of distance configurations | ≤ 8 |
| Focus adjustment time | ≤ 20 ms |
| Focus trigger source | Data interface / Digital inputs |
| Light source | Light spot, laser, Visible, Red, 660 nm |
| Laser class | 2, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 56” from May 8, 2019 (EN 60825-1:2014+A11:2021, IEC 60825-1:2014) |
| Aperture angle | ≤ 50° |
| Reading distance | 400 mm … 1,600 mm 1) |
| Scanning frequency | 400 Hz … 1,200 Hz |
| Code resolution | 0.17 mm … 0.4 mm |
| Oscillating mirror functions Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot Oscillation frequency 0.5 Hz … 4 Hz Angle of deflection –20° … 20° (can be adjusted via software) |
Oscillating mirror functions |
| Oscillating mirror functions | Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot |
| Oscillation frequency | 0.5 Hz … 4 Hz |
| Angle of deflection | –20° … 20° (can be adjusted via software) |
| Supply voltage | 18 V DC … 30 V DC |
| Power consumption | 17 W |
| Housing material | Aluminum die cast |
| Housing color | Light blue (RAL 5012) |
| Window material | Glass |
| Enclosure rating | IP65 (EN 60529/A1 (2002-02)) |
| Weight | 2,200 g |
| Dimensions (L x W x H) | 182 mm x 128 mm x 97 mm |
| MTBF | 100,000 h |
| MTTF | 40,000 h (Laser diode) 1) |
| Readable code structures | 1D codes |
| Bar code types | Interleaved 2 of 5, all current code types, Codabar, Code 128, Code 39, Code 93, GS1-128 / EAN 128, UPC / GTIN / EAN |
| Code printing process | Label (printed codes) |
| Print ratio | 2:1 … 3:1 |
| No. of codes per scan | 1 … 20 (Standard decoder)1 … 6 (SMART decoder) |
| No. of codes per reading interval | 1 … 50 (auto-discriminating) |
| No. of characters per reading interval | 5,000 |
| No. of multiple readings | 1 … 100 |
| Ethernet✔ , TCP/IPRemarkOnly with cloning plug I/O, CAN IN/OUT or CAN RedundantFunctionData interface (read result output), Service interfaceData transmission rate10/100 MBit/s | Ethernet |
| Ethernet | ✔ , TCP/IP |
| Remark | Only with cloning plug D-Sub and Ethernet |
| Function | SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server) |
| Data transmission rate | 20 kbit/s … 1 Mbit/s |
| PROFINET✔Type of fieldbus integrationOptional over external fieldbus module CDF600-2RemarkOnly with cloning plug I/O, CAN IN/OUT or CAN RedundantFunctionPROFINET Single Port, PROFINET Dual Port | PROFINET |
| PROFINET | ✔ |
| Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
| EtherNet/IP™✔RemarkOnly with cloning plug I/O, CAN IN/OUT or CAN RedundantData transmission rate10/100 MBit/s | EtherNet/IP™ |
| EtherNet/IP™ | ✔ |
| Serial✔ , RS-232, RS-422, RS-485RemarkOnly with cloning plug D-Sub and EthernetFunctionData interface (read result output), AUX (only RS-232)Data transmission rate0.3 kBaud … 115.2 kBaud, AUX: 57.6 kBaud (RS-232) | Serial |
| Serial | ✔ , RS-232, RS-422, RS-485 |
| CAN✔FunctionSICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server)Data transmission rate20 kbit/s … 1 Mbit/s | CAN |
| CAN | ✔ |
| PROFIBUS DP✔Type of fieldbus integrationOptional over external fieldbus module CDF600-2 | PROFIBUS DP |
| PROFIBUS DP | ✔ |
| Digital inputs | 6 (“Sensor 1” … “Sensor 6”) |
| Digital outputs | 4 (“Result 1” … “Result 4”) |
| Reading pulse | Digital inputs, serial interface, auto pulse, CAN |
| Optical indicators | 6 LEDs (Ready, Result, laser, Data, CAN, LNK TX, Bar graph for displaying the reading rate percentage (10 LEDs)) |
| Control elements | 2 buttons |
| Parameter storage | Integrated in cloning plug |
| Configuration software | SOPAS ET |
| Electromagnetic compatibility (EMC) | EN 61000-6-4 (2007-01) + A1 (2011) / EN 61000-6-2:2005-08 |
| Vibration resistance | EN 60068-2-6:2008-02 |
| Shock resistance | EN 60068-2-27:2009-05 |
| Ambient operating temperature | 0 °C … +40 °C |
| Storage temperature | –20 °C … +70 °C |
| Permissible relative humidity | 90 %, Non-condensing |
| Ambient light immunity | 2,000 lx, on barcode |
| Bar code print contrast (PCS) | ≥ 60 % |
| ECLASS 5.0 | 27280102 |
| ECLASS 5.1.4 | 27280102 |
| ECLASS 6.0 | 27280102 |
| ECLASS 6.2 | 27280102 |
| ECLASS 7.0 | 27280102 |
| ECLASS 8.0 | 27280102 |
| ECLASS 8.1 | 27280102 |
| ECLASS 9.0 | 27280102 |
| ECLASS 10.0 | 27280102 |
| ECLASS 11.0 | 27280102 |
| ECLASS 12.0 | 27280102 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 43211701 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| KC Mark certificate | ✔ |
| Profinet certificate | ✔ |
| BIS registration | ✔ |
| Laser safety (IEC 60825-1) declaration of manufacturer | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
| 4Dpro | ✔ |
| header | value |
| Unit weight | 2.393 Kilograms |
| Net unit weight | 2.393 Kilograms |
| Unit volume | 10080 Cubic Centimetres (cm³) |
| Country of origin | Germany |
| EAN | 4047084250514 |
