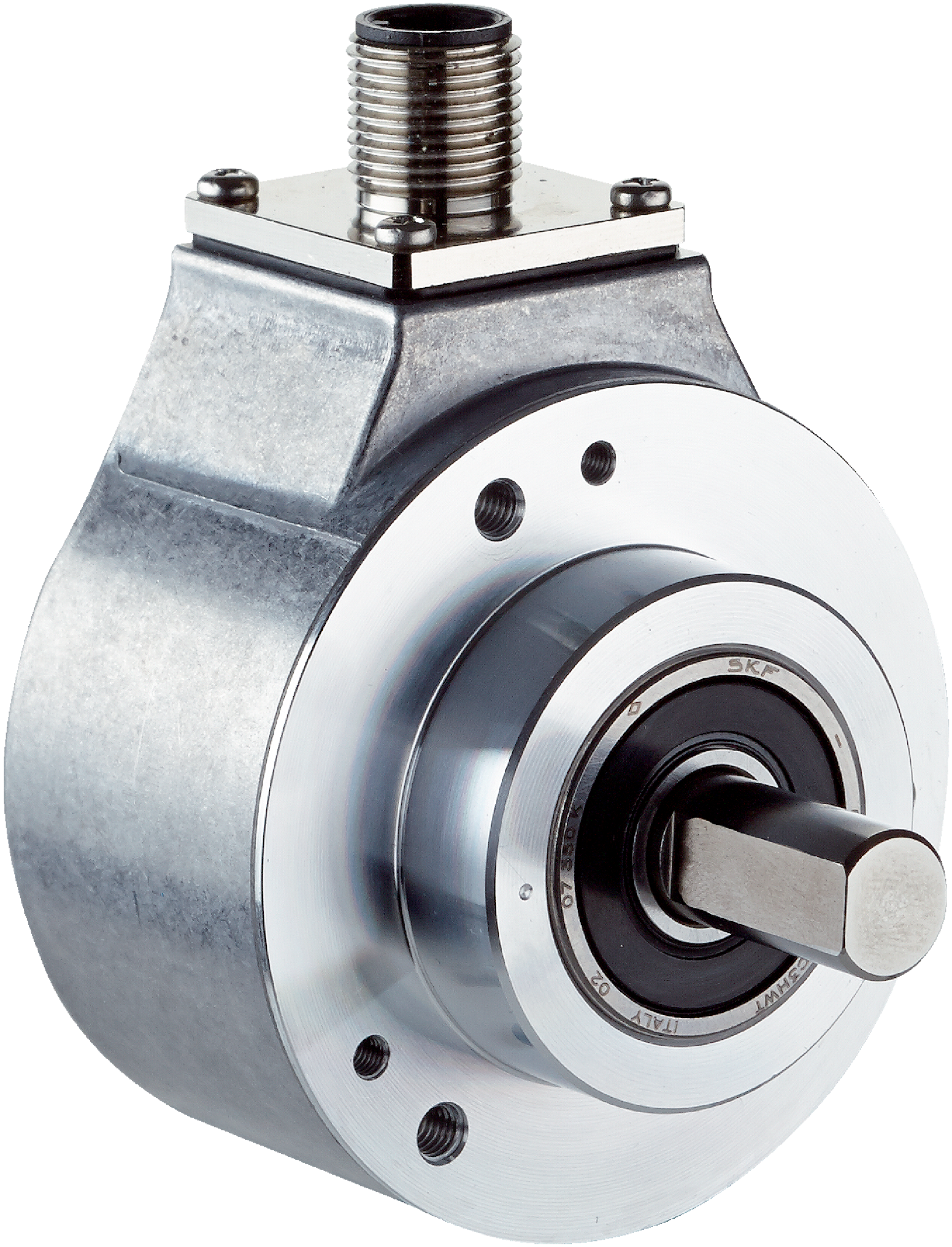

DBS60E-S3EC00S27 1076514 Incremental encoders: DBS60 SICK Products Motion control sensors Incremental encoders > Motion control sensors > Incremental encoders > DBS60 > DBS60E-S3EC00S27 CE|cULus|RCM|UKCA
| Special device | ✔ |
|---|---|
| Specialty | Connector M12, 5-pin radial with customized pin allocation |
| Standard reference device | DBS60E-S3EC01000 |
| MTTFD (mean time to dangerous failure) | 500 years (EN ISO 13849-1) 1) |
| Pulses per revolution | 1,000 |
| Measuring step | ≤ 90°, electric/pulses per revolution |
| Measuring step deviation | ± 18° / pulses per revolution |
| Error limits | Measuring step deviation x 3 |
| Duty cycle | ≤ 0.5 ± 5 % |
| Communication interface | Incremental |
| Communication Interface detail | HTL / Push pull |
| Number of signal channels | 6-channel |
| Initialization time | < 5 ms 1) |
| Output frequency | + 300 kHz 2) |
| Load current | ≤ 30 mA, per channel |
| Power consumption | ≤ 1 W (without load) |
| Connection type | Special version |
| Connection type Detail | Connector M12, 5-pin radial with customized pin allocation |
| Supply voltage | 10 … 27 V |
| Reference signal, number | 1 |
| Reference signal, position | 90°, electric, logically gated with A and B |
| Reverse polarity protection | ✔ |
| Short-circuit protection of the outputs | ✔ 1) |
| Mechanical design | Solid shaft, face mount flange |
| Shaft diameter | 6 mmWith flat |
| Shaft length | 10 mm |
| Flange type / stator coupling | Flange with 3 x M3 and 3 x M4 |
| Weight | + 0.3 kg 1) |
| Shaft material | Stainless steel |
| Flange material | Aluminum |
| Housing material | Aluminum |
| Start up torque | + 1.2 Ncm (+20 °C) |
| Operating torque | 1.1 Ncm (+20 °C) |
| Permissible shaft loading | 100 N (radial) 2)50 N (axial) 2) |
| Operating speed | 6,000 min⁻¹ 3) |
| Maximum operating speed | 9,000 min⁻¹ 4) |
| Moment of inertia of the rotor | 33 gcm² |
| Bearing lifetime | 3.6 x 109 revolutions |
| Angular acceleration | ≤ 500,000 rad/s² |
| EMC | According to EN 61000-6-2 and EN 61000-6-3 |
| Enclosure rating | IP67, housing side (IEC 60529) 1)IP65, shaft side (IEC 60529) |
| Permissible relative humidity | 90 % (Condensation not permitted) |
| Operating temperature range | –20 °C … +85 °C 2) |
| Storage temperature range | –40 °C … +100 °C, without package |
| Resistance to shocks | 250 g, 3 ms (EN 60068-2-27) |
| Resistance to vibration | 30 g, 10 Hz … 2,000 Hz (EN 60068-2-6) |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| cULus certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
| ECLASS 5.0 | 27270501 |
| ECLASS 5.1.4 | 27270501 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270501 |
| ECLASS 8.0 | 27270501 |
| ECLASS 8.1 | 27270501 |
| ECLASS 9.0 | 27270501 |
| ECLASS 10.0 | 27270501 |
| ECLASS 11.0 | 27270501 |
| ECLASS 12.0 | 27270501 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
| header | value |
| Unit weight | 0.364 Kilograms |
| Net unit weight | 0.364 Kilograms |
| Unit volume | 1144 Cubic Centimetres (cm³) |
| Country of origin | Malaysia |
| EAN | 4047084369636 |
