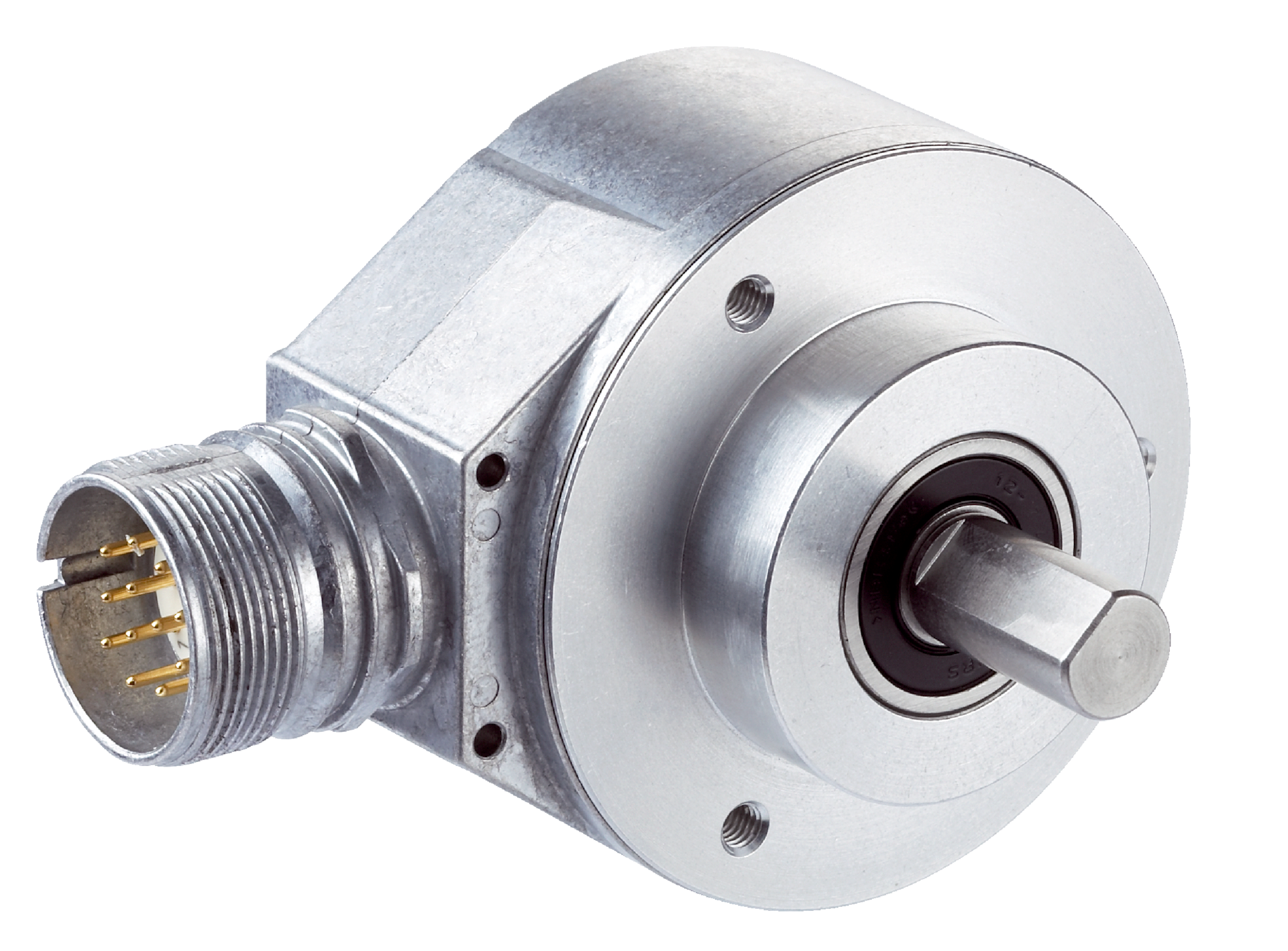

Products Motion control sensors Incremental encoders > Motion control sensors > Incremental encoders > DFS60 > DFS60B-S4CA04000 {“MTTFD (mean time to dangerous failure)”: “300u00a0years (ENu00a0ISOu00a013849-1)u00a01)”, “Pulses per revolution”: “4,000u00a01)”, “Measuring step”: “90u00b0, electric/pulses per revolution”, “Measuring step deviation at non binary number of lines”: “u00b1u00a00.01u00b0”, “Error limits”: “u00b1u00a00.05u00b0”, “Communication interface”: “Incremental”, “Communication Interface detail”: “TTLu00a0/ RS-422”, “Number of signal channels”: “6-channel”, “Initialization time”: “40u00a0ms”, “Output frequency”: “u2264u00a0600u00a0kHz”, “Load current”: “u2264u00a030u00a0mA”, “Power consumption”: “u2264u00a00.5u00a0W (without load)”, “Connection type”: “Male connector, M23, 12-pin, radial”, “Supply voltage”: “10u00a0… 32u00a0V”, “Reference signal, number”: “1”, “Reference signal, position”: “90u00b0, electric, logically gated with A and B”, “Reverse polarity protection”: “u2714”, “Short-circuit protection of the outputs”: “u2714u00a01)”, “Mechanical design”: “Solid shaft, face mount flange”, “Shaft diameter”: “10u00a0mmWith flat”, “Shaft length”: “19u00a0mm”, “Weight”: “+u00a00.3u00a0kg”, “Shaftu00a0material”: “Stainless steel”, “Flange material”: “Aluminum”, “Housing material”: “Aluminum die cast”, “Start up torque”: “0.5u00a0Ncm (+20u00a0u00b0C)”, “Operating torque”: “0.3u00a0Ncm (+20u00a0u00b0C)”, “Permissible shaft loading”: “80u00a0N (radial)40u00a0N (axial)”, “Operating speed”: “u2264u00a09,000u00a0minu207bu00b9u00a01)”, “Moment of inertia of the rotor”: “6.2u00a0gcmu00b2”, “Bearing lifetime”: “3.6u00a0x 10^10 revolutions”, “Angular acceleration”: “u2264u00a0500,000u00a0rad/su00b2”, “EMC”: “According to ENu00a061000-6-2 and ENu00a061000-6-4”, “Enclosure rating”: “IP67, Housing side, male connector (IECu00a060529)u00a01)IP65, shaft side (IECu00a060529)”, “Permissible relative humidity”: “90u00a0% (Condensation not permitted)”, “Operating temperature range”: “u201340u00a0u00b0Cu00a0… +100u00a0u00b0Cu00a02)u201330u00a0u00b0Cu00a0… +100u00a0u00b0Cu00a03)”, “Storage temperature range”: “u201340u00a0u00b0Cu00a0… +100u00a0u00b0C, without package”, “Resistance to shocks”: “70u00a0g, 6u00a0ms (ENu00a060068-2-27)”, “Resistance to vibration”: “30u00a0g, 10u00a0Hzu00a0… 2,000u00a0Hz (ENu00a060068-2-6)”, “EU declaration of conformity”: “u2714”, “UK declaration of conformity”: “u2714”, “ACMA declaration of conformity”: “u2714”, “Moroccan declaration of conformity”: “u2714”, “China RoHS”: “u2714”, “cULus certificate”: “u2714”, “Information according to Art. 3 of Data Act (Regulation EU 2023/2854)”: “u2714”, “ECLASS 5.0”: “27270501”, “ECLASS 5.1.4”: “27270501”, “ECLASS 6.0”: “27270590”, “ECLASS 6.2”: “27270590”, “ECLASS 7.0”: “27270501”, “ECLASS 8.0”: “27270501”, “ECLASS 8.1”: “27270501”, “ECLASS 9.0”: “27270501”, “ECLASS 10.0”: “27270501”, “ECLASS 11.0”: “27270501”, “ECLASS 12.0”: “27270501”, “ETIM 5.0”: “EC001486”, “ETIM 6.0”: “EC001486”, “ETIM 7.0”: “EC001486”, “ETIM 8.0”: “EC001486”, “UNSPSC 16.0901”: “41112113”, “header”: “value”, “Unit weight”: “0.305 Kilograms”, “Net unit weight”: “0.305 Kilograms”, “Unit volume”: “850.5 Cubic Centimetres (cmu00b3)”, “Country of origin”: “Germany”, “EAN”: “4047084320569”}
