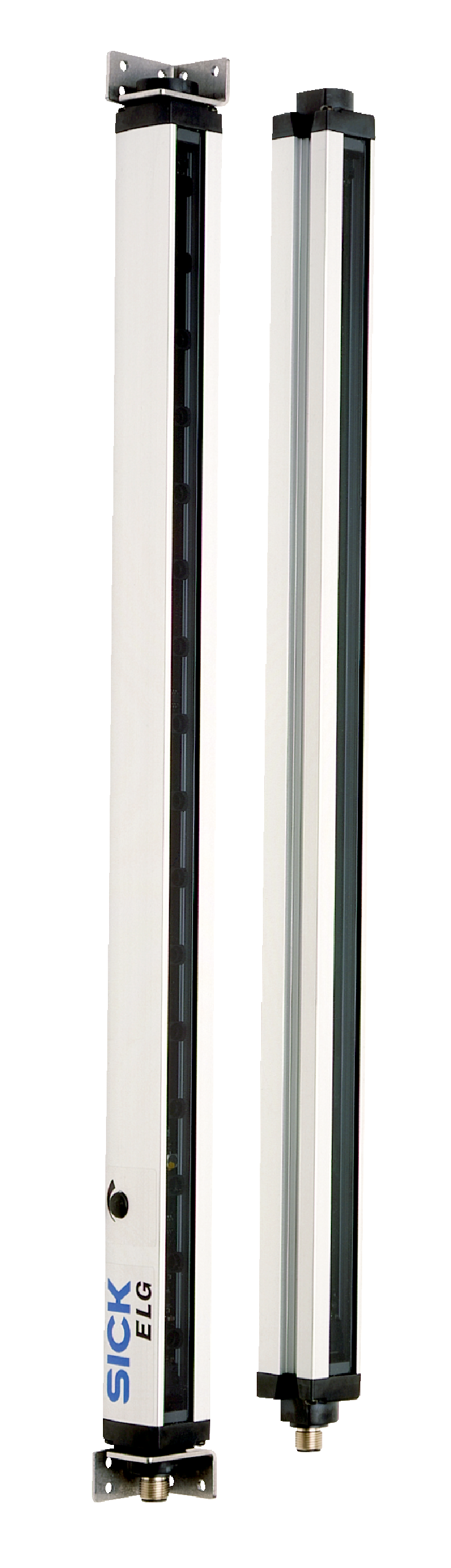

ELG6-1620P521 1040686 Automation light grids: ELG SICK Products Detection sensors Automation light grids > Detection sensors > Automation light grids > ELG > ELG6-1620P521 CE|RCM|UKCA
| Sensor principle | Sender/receiver |
|---|---|
| Minimum detectable object (MDO) | 65 mm 1) |
| Beam separation | 60Â mm |
| Number of beams | 28 |
| Detection height | 1,620Â mm |
| Evaluation beams | Parallel beam |
| Wave length | 880Â nm |
| Supply voltage Vs | DC 15Â VÂ … 30Â VÂ 1) |
| Power consumption sender | <Â 100Â mAÂ 1) |
| Power consumption receiver | <Â 100Â mAÂ 1) |
| Ripple | <Â 5Â Vpp |
| Output current Imax. | ≤ 100 mA |
| Output load, capacitive | 100Â nF |
| Output load, Inductive | 1Â H |
| Initialization time | 1Â s |
| Switching output | 2Â x PNPÂ 2) |
| Output mode | Q dark switching 3) |
| Dimensions (W x H x D) | 34 mm x 1,696 mm x 29 mm |
| Connection type | Male connector M12, 4-pin |
| Housing material | Aluminum |
| Display | LED |
| Synchronization | Optical |
| Enclosure rating | IP65Â 4) |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Protection class | III |
| Weight | 4,200Â g |
| Pulse frequency | 250Â kHz |
| Front screen | PMMA |
| Maximum range | 17Â m |
| Minimum range | ≥ 0 mm |
| Operating range | 12Â m |
| Response time | 100 ms 1) |
| Shock resistance | 10 g / DIN EN 60068-2-29 / 16 ms |
| Vibration resistance | 5 g, 10 Hz … 55 Hz (IEC 68-2-6) |
| EMC | ENÂ 60947-5-2 |
| Ambient light immunity | Indirect: ≤ 150,000 lx 1) |
| Ambient operating temperature | –25 °C … +55 °C |
| Ambient temperature, storage | –40 °C … +70 °C |
| ECLASS 5.0 | 27270910 |
| ECLASS 5.1.4 | 27270910 |
| ECLASS 6.0 | 27270910 |
| ECLASS 6.2 | 27270910 |
| ECLASS 7.0 | 27270910 |
| ECLASS 8.0 | 27270910 |
| ECLASS 8.1 | 27270910 |
| ECLASS 9.0 | 27270910 |
| ECLASS 10.0 | 27270910 |
| ECLASS 11.0 | 27270910 |
| ECLASS 12.0 | 27270910 |
| ETIM 5.0 | EC002549 |
| ETIM 6.0 | EC002549 |
| ETIM 7.0 | EC002549 |
| ETIM 8.0 | EC002549 |
| UNSPSC 16.0901 | 39121528 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| header | value |
| Unit weight | 2.539 Kilograms |
| Net unit weight | 2.539 Kilograms |
| Unit volume | 36630 Cubic Centimetres (cm³) |
| Country of origin | Hungary |
| EAN | 4047084179037 |
