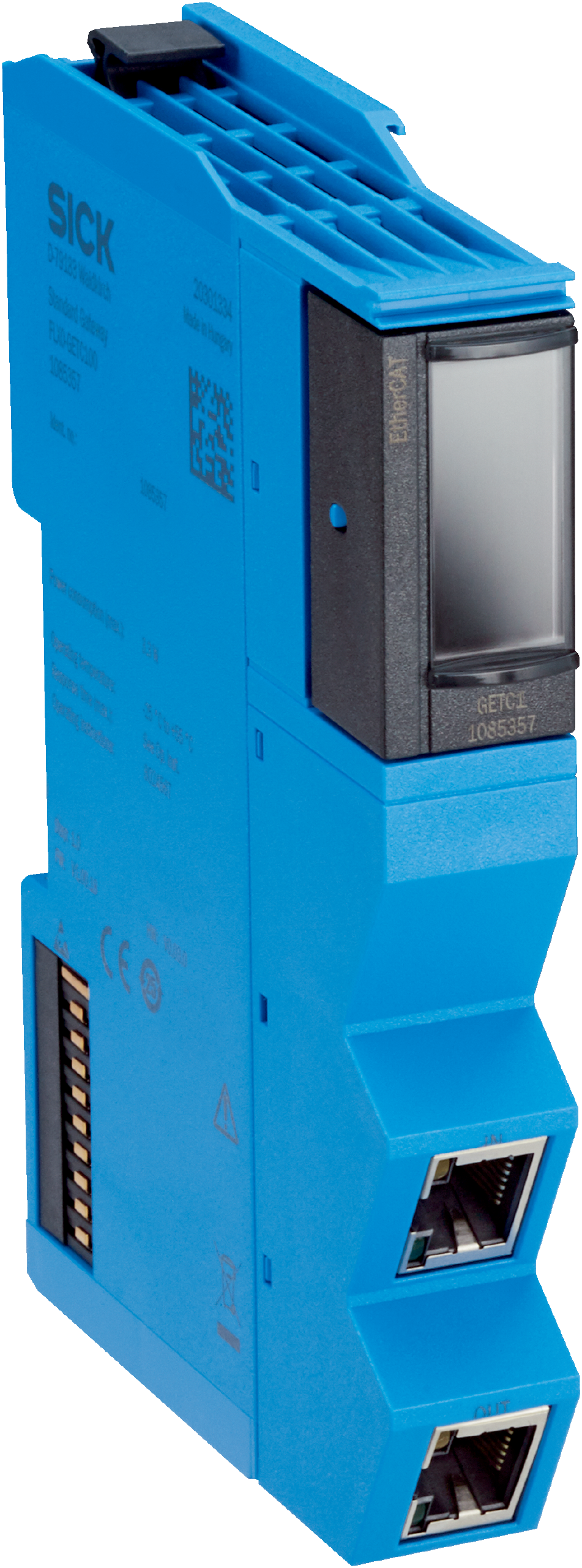

FLX0-GETC100 1085357 Safety controllers: Flexi Gateway SICK Products Safety Safety controllers > Safety > Safety controllers > Flexi Gateway > FLX0-GETC100 CE|cULus|RCM|UKCA
| Module | Gateway |
|---|---|
| Description | The gateway module enables a safety controller to send data to a network for control and diagnostic purposes, and to receive data from the network. |
| Security Level | SL-C 1Â (IECÂ 62443-4-2) |
| Fieldbus | EtherCAT® |
| Configuration method | Via software (Safety Designer) |
| Items supplied | Gateway
Operating instructions for download |
| Integration into an EtherCAT® network | ✔ |
| Configuration and diagnosticsConfiguration via TFT display✔ | Configuration and diagnostics |
| Configuration and diagnostics | |
| Configuration via TFT display | ✔ |
| Fieldbus interface | 2Â x female connector, RJ45 |
| Note | An EtherCAT® master (e.g., higher-level controller or computer) and/or another EtherCAT® slave device can be connected at the RJ45 female connector. |
| Display elements | TFT display |
| Protection class | III (ENÂ 61140) |
| Interference resistance | ENÂ 61000-6-2 |
| Interference emission | ENÂ 61000-6-4 |
| Voltage supply | The voltage supply of the extension modules is maintained via the backplane bus |
| Power loss | ≤ 3.3 W |
| Current consumption at nominal voltage | 135Â mA |
| Dimensions (W x H x D) | 18 mm x 124.7 mm x 85.5 mm |
| Contamination rating | 2Â (IECÂ 61010-1) |
| Control device type | Open device (IECÂ 61010-2-201) |
| Weight | 108 g (± 5 %) |
| Mounting | Mounting on a 35 mm × 7.5 mm mounting rail in accordance with IEC 60715 |
| Enclosure rating | IP20 (ENÂ 60529) |
| Ambient operating temperature | –25 °C … +55 °C 1) |
| Storage temperature | –25 °C … +70 °C |
| Air humidity | ≤ 95 %, Non-condensing |
| Vibration resistance | 1 g, 5 Hz … 200 Hz (EN 60068-2-6) |
| Shock resistance | 15Â g, 11Â ms (ENÂ 60068-2-27) |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| S Mark certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
| Cybersecurity certificate | ✔ |
| ECLASS 5.0 | 27243001 |
| ECLASS 5.1.4 | 27243101 |
| ECLASS 6.0 | 27243101 |
| ECLASS 6.2 | 27243101 |
| ECLASS 7.0 | 27243101 |
| ECLASS 8.0 | 27243101 |
| ECLASS 8.1 | 27243101 |
| ECLASS 9.0 | 27243101 |
| ECLASS 10.0 | 27243101 |
| ECLASS 11.0 | 27243101 |
| ECLASS 12.0 | 27243101 |
| ETIM 5.0 | EC001449 |
| ETIM 6.0 | EC001449 |
| ETIM 7.0 | EC001449 |
| ETIM 8.0 | EC001449 |
| UNSPSC 16.0901 | 32151705 |
| header | value |
| Unit weight | 0.136 Kilograms |
| Net unit weight | 0.136 Kilograms |
| Unit volume | 332.5 Cubic Centimetres (cm³) |
| Country of origin | Hungary |
| EAN | 4047084477812 |
