FPS502 1111841 Profiling systems: Free Flow Profiler SICK Products Systems Profiling systems > Systems > Profiling systems > Free Flow Profiler > FPS502 CE|UKCA

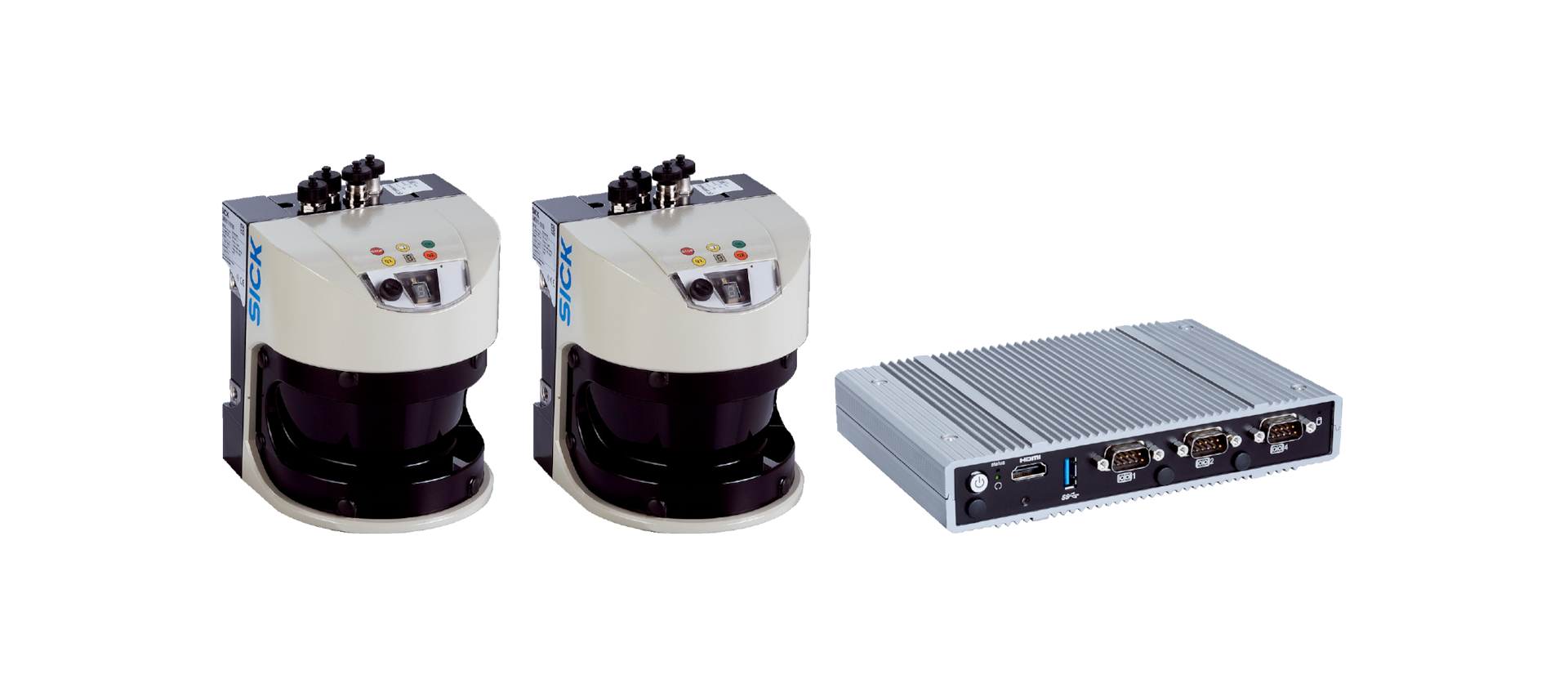

| 2x | LMS511 SE |
|---|---|
| 1x | Traffic Controller FPS |
| Application | Vehicle measurement, Toll systems, Verification of compliance with vehicle dimension regulations, Optimization of the loading process |
| Number of covered lanes | Up to 4Â lanes at best performance
Max. 9Â sensors per system |
| Scanner design | 2-scanner solution |
| Vehicle data | Vehicle dimensions (length, width, height)
Vehicle classes Driving direction Lane assignment Confidence level for all vehicle datas 3D point cloud |
| Sensor | 2D LiDAR sensor |
| Classification system | Europe, Asia, North America |
| Amount of vehicle classes | Up to 30Â classes |
| Recommended distance between max. vehicle height and sensor | ≥ 1 m |
| Recommended vehicle distance | 0.6Â m at v <Â 30Â km/h 2.2Â m at v <Â 120Â km/h |
| Calibration | Automatic |
| Stop-and-go functionality | Yes |
| Scanning frequency | 75Â Hz, for LMS Width
35Â Hz, for LMS Length |
| Max. range with 10Â % reflectivity | 40Â m |
| Aperture angle | 190°, per LMS511 SE |
| Laser class | 1, eye-safe (IECÂ 60825-1:2014) |
| Heating | ✔ |
| Internal computer | Traffic Controller FPS ✔ |
| Internal memory | 32Â GB |
| Installation position | Overhead or at the side |
| Installation height | 5 m … 8 mAt least 1 m higher than the maximum vehicle heightAngle between LMS and vehicle > 15° |
| Counting accuracy | 99.8Â % |
| Classification accuracy | 98Â % (For TLS8+1 classes) |
| Length measurement accuracy | ± 400 mm at v < 30 km/h (± 2σ) 1)± 1,000 mm at v < 120 km/h (± 2σ) 1) |
| Width measurement accuracy | ± 50 mm at v < 30 km/h (± 2σ) 2)± 100 mm at v < 120 km/h (± 2σ) 2) |
| Height measurement accuracy | ± 30 mm at v < 120 km/h (± 2σ) 3) |
| Minimum object size | 1 m x 0.6 m x 0.6 m (L x W x H) |
| Maximum object size | 32 m x 3.5 m x 5 m (L x W x H) |
| Minimum detectable object | 190 mm x 130 mm x 130 mm < 30 km/h525 mm x 130 mm x 130 mm < 120 km/h |
| Output data | Vehicle data |
| Items supplied | 2D LiDAR sensor LMS511 SE (2Â x)Traffic Controller FPS including softwareUSB stick with TEMS info sample client, source code for TEMS info sample client, TEMS analyzer and operating instructions |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| China RoHS | ✔ |
| ECLASS 5.0 | 27281001 |
| ECLASS 5.1.4 | 27280190 |
| ECLASS 6.0 | 27280190 |
| ECLASS 6.2 | 27280190 |
| ECLASS 7.0 | 27280190 |
| ECLASS 8.0 | 27280190 |
| ECLASS 8.1 | 27280190 |
| ECLASS 9.0 | 27280190 |
| ECLASS 10.0 | 27280190 |
| ECLASS 11.0 | 27280190 |
| ECLASS 12.0 | 27280190 |
| UNSPSC 16.0901 | 41111615 |
| header | value |
| Unit weight | 11.000 Kilograms |
| Net unit weight | 11 Kilograms |
| Unit volume | 84000 Cubic Centimetres (cm³) |
| Country of origin | Germany |
| EAN | 4047084510427 |
