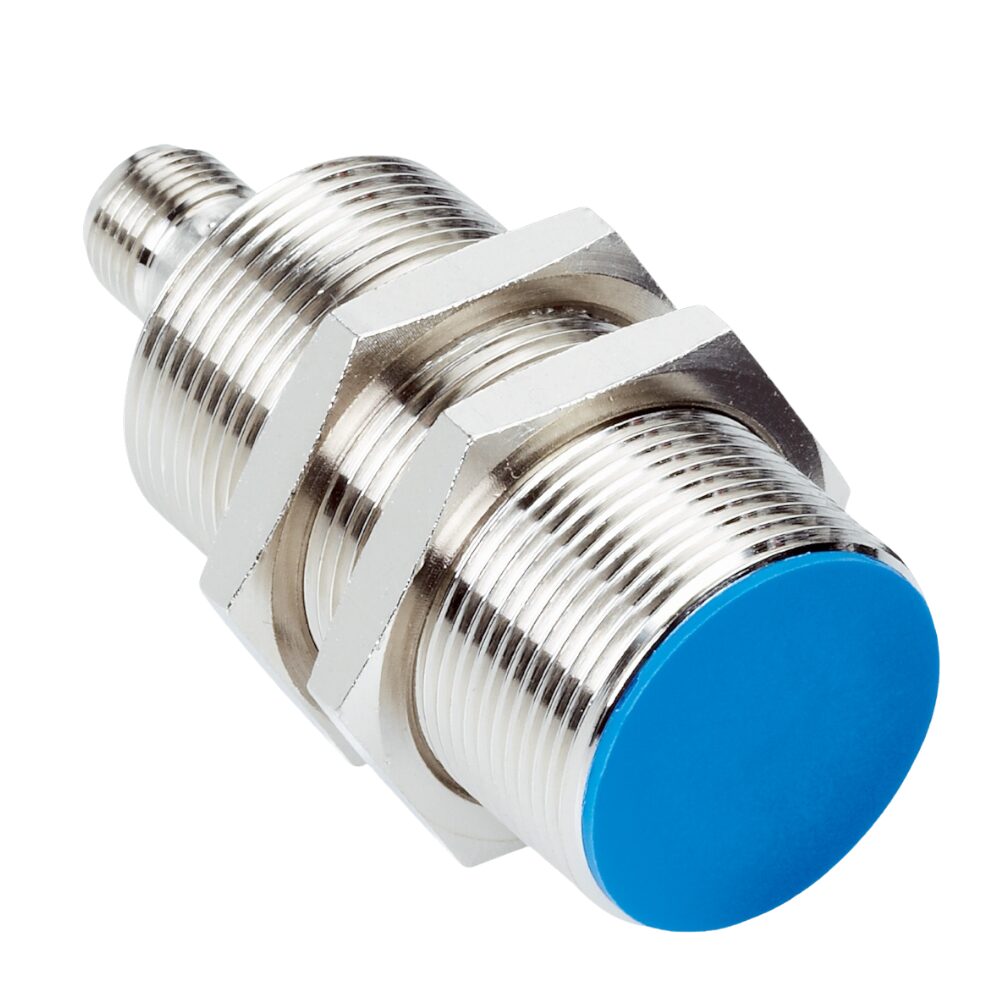

SICK SAM Series Inductive Proximity Sensor – IMC30-10BPDZC0SA05 (M30, IO-Link, Speed Monitor)
Product Overview

The SICK IMC30-10BPDZC0SA05 is a robust inductive proximity sensor designed for reliable detection and monitoring in industrial automation. Featuring a 10 mm sensing range, flush installation, and M30 housing, this sensor combines durability with advanced functionality.

Equipped with IO-Link communication and an integrated speed monitoring function, it allows real-time diagnostics, parameterization, and flexible integration into modern control systems. Its high enclosure rating (IP67) ensures reliable performance in demanding environments such as material handling, packaging, and rotating machinery applications.

Key Features

M30 threaded housing (Ø30 mm) with flush installation

Sensing range: 10 mm (Sn), 8.1 mm (Sa safe range)

Switching output: PNP, Normally Open (NO)

Electrical connection: M12 male connector, 4-pin

Advanced functionality: Integrated speed monitor for pulse detection

IO-Link connectivity for easy configuration and diagnostics

Adjustable parameters: speed range, acceleration, time delay

Protection class: IP67 for harsh industrial use

Includes mounting nuts (nickel-plated brass, 2x) for easy installation

Technical Specifications
Parameter Details
Manufacturer SICK
Series SAM
Model IMC30-10BPDZC0SA05
Part Number 1061704
Housing Metric M30 × 1.5, Ø30 mm
Installation Type Flush
Sensing Range (Sn) 10 mm
Safe Sensing Range (Sa) 8.1 mm
Switching Output PNP, NO (Normally Open)
Output Type Pulse output (Q Imp), Threshold-dependent output (Q)
Electrical Wiring DC, 4-wire
Connection M12 male connector, 4-pin
Speed Range (adjustable) 6 … 12,000 pulses/min
Acceleration Range (adjustable) 0.1 … 2 pulses/s²
Time Delay Configurable (0–254 s or threshold-triggered)
Enclosure Rating IP67 (EN 60529)
Special Features IO-Link, Speed Monitoring
Items Included 2x Mounting nuts, brass, nickel-plated
Applications

Rotating machinery monitoring (fans, motors, spindles)

Conveyor and material handling systems

Speed supervision in packaging, textile, and printing machines

General industrial automation with high detection reliability

Why Choose the IMC30-10BPDZC0SA05?

✔ Advanced speed monitoring with adjustable thresholds
✔ IO-Link enabled for Industry 4.0 integration
✔ Robust IP67 housing for harsh environments
✔ Reliable detection with 10 mm flush sensing range
