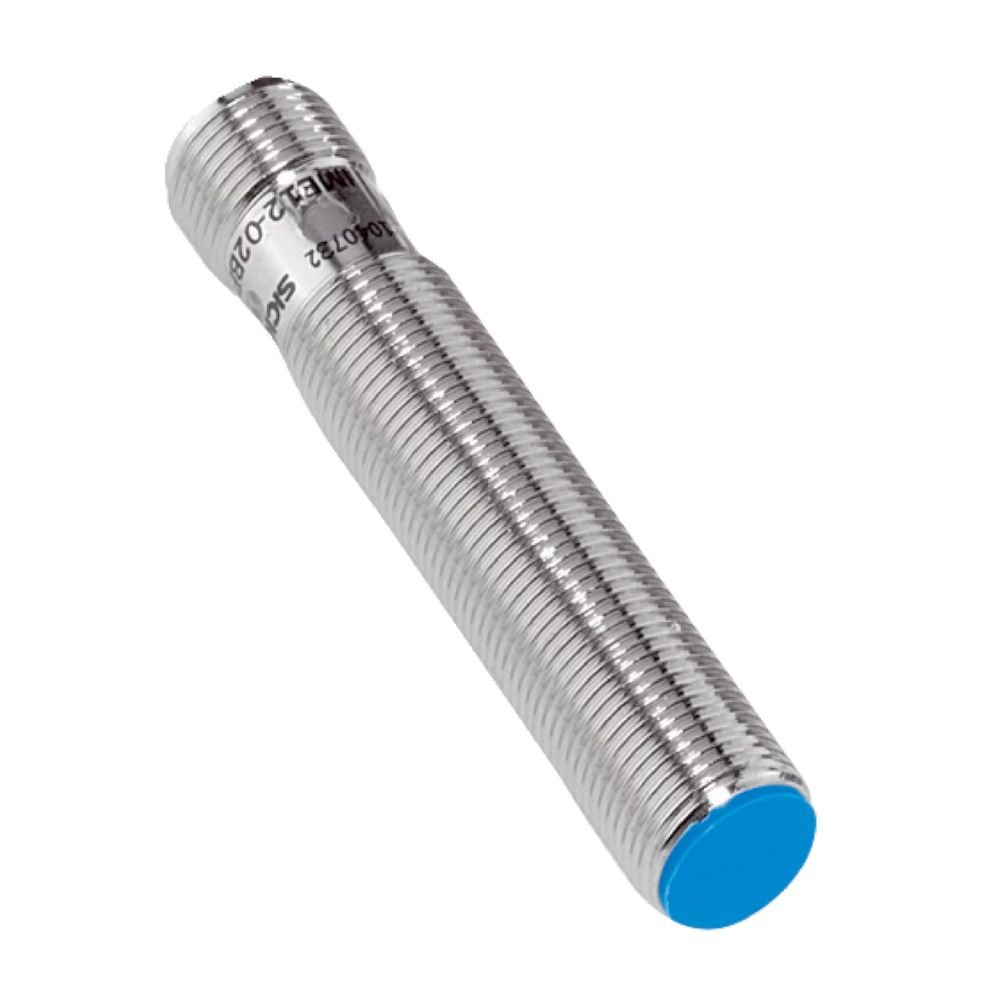

Inductive Proximity Sensor: IME12-04BPSZC0S

Part No.: 1040764

General Information

• Sensor Type: Inductive proximity sensor

• Series: IME

• Housing: Metric, standard design

• Thread Size: M12 x 1

• Diameter: 12 mm

• Installation Type: Flush

Sensing & Performance

• Sensing Range (Sn): 4 mm

• Safe Sensing Range (Sa): 3.24 mm

• Switching Frequency: 2,000 Hz

• Hysteresis: 5% to 15%

• Reproducibility: ≤ 2%

• Temperature Drift (Sr): ±10%

• Time Delay Before Availability: ≤ 100 ms

Electrical Specifications

• Supply Voltage: 10 V DC to 30 V DC

• Ripple: ≤ 10%

• Voltage Drop: ≤ 2 V

• Output Type: PNP, Normally Open (NO)

• Electrical Wiring: DC 3-wire

• Continuous Current (Ia): ≤ 200 mA

• No-load Current: ≤ 10 mA

• Short-circuit Protection: Yes

• Power-up Pulse Protection: Yes

Mechanical & Environmental

• Enclosure Rating: IP67 (EN 60529)

• Ambient Operating Temperature: –25 °C to +75 °C

• Shock and Vibration Resistance:

  • Shock: 30 g, 11 ms

  • Vibration: 10 Hz to 55 Hz, 1 mm

• Housing Material: Brass, nickel-plated

• Sensing Face Material: PA 66 (Plastic)

• Housing Length: 65 mm

• Thread Length: 48 mm

• Tightening Torque (max.): ≤ 12 Nm

• Connector Type: M12 male, 4-pin

Included Accessories

• 2x Mounting nuts, brass, nickel-plated
