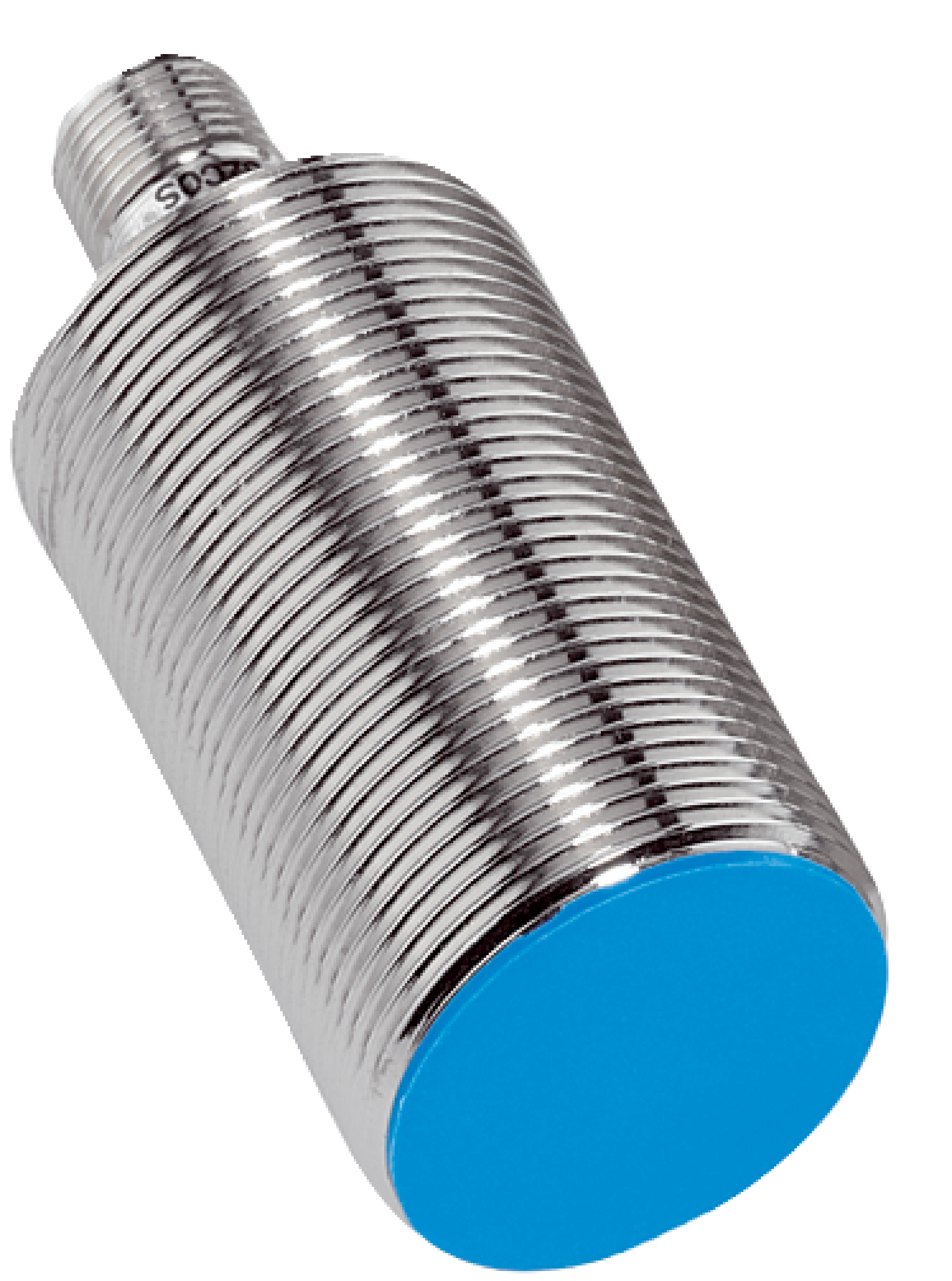

IME30-10BNOZC0S 1041009 Inductive proximity sensors: IME SICK Products Detection sensors Inductive proximity sensors > Detection sensors > Inductive proximity sensors > IME > IME30-10BNOZC0S CE|cULus|RCM|UKCA
| 1x | BEF-MU-M30 |
|---|---|
| Housing | Standard design |
| Thread size | M30Â x 1.5 |
| Diameter | Ø 30 mm |
| Sensing range Sn | 10Â mm |
| Safe sensing range Sa | 8.1Â mm |
| Installation type | Flush |
| Switching frequency | 500Â Hz |
| Connection type | Male connector M12, 4-pin |
| Switching output | NPN |
| Switching output detail | NPN |
| Output function | NC |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67Â 1) |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
| Supply voltage | 10Â VÂ DCÂ … 30Â VÂ DC |
| Ripple | ≤ 10 % |
| Voltage drop | ≤ 2 V 1) |
| Time delay before availability | ≤ 125 ms |
| Hysteresis | 5Â %Â … 15Â % |
| Reproducibility | ≤ 2 % 2) 3) |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to ENÂ 60947-5-2 |
| Continuous current Ia | ≤ 200 mA |
| No load current | ≤ 10 mA |
| Short-circuit protection | ✔ |
| Power-up pulse protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms/10 Hz … 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C … +75 °C |
| Housing material | Brass, nickel-plated |
| Sensing face material | Plastic, PA 66 |
| Housing length | 71Â mm |
| Thread length | 54Â mm |
| Tightening torque, max. | ≤ 100 Nm |
| UL File No. | NRKH.E181493 |
| MTTFD | 1,735Â years |
| DCavg | 0Â % |
| Note | The values are reference values which may vary |
| St37 steel (Fe) | 1 |
| Stainless steel (V2A, 304) | Approx. 0.8 |
| Aluminum (Al) | Approx. 0.45 |
| Copper (Cu) | Approx. 0.4 |
| Brass (Br) | Approx. 0.4 |
| Remark | Associated graphic see “Installation” |
| B | 30Â mm |
| C | 30Â mm |
| D | 30Â mm |
| F | 80Â mm |
| ECLASS 5.0 | 27270101 |
| ECLASS 5.1.4 | 27270101 |
| ECLASS 6.0 | 27270101 |
| ECLASS 6.2 | 27270101 |
| ECLASS 7.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 8.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 10.0 | 27270101 |
| ECLASS 11.0 | 27270101 |
| ECLASS 12.0 | 27274001 |
| ETIM 5.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| UNSPSC 16.0901 | 39122230 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| header | value |
| Unit weight | 0.144 Kilograms |
| Net unit weight | 0.144 Kilograms |
| Unit volume | 144 Cubic Centimetres (cm³) |
| Country of origin | Hungary |
| EAN | 4047084390821 |
