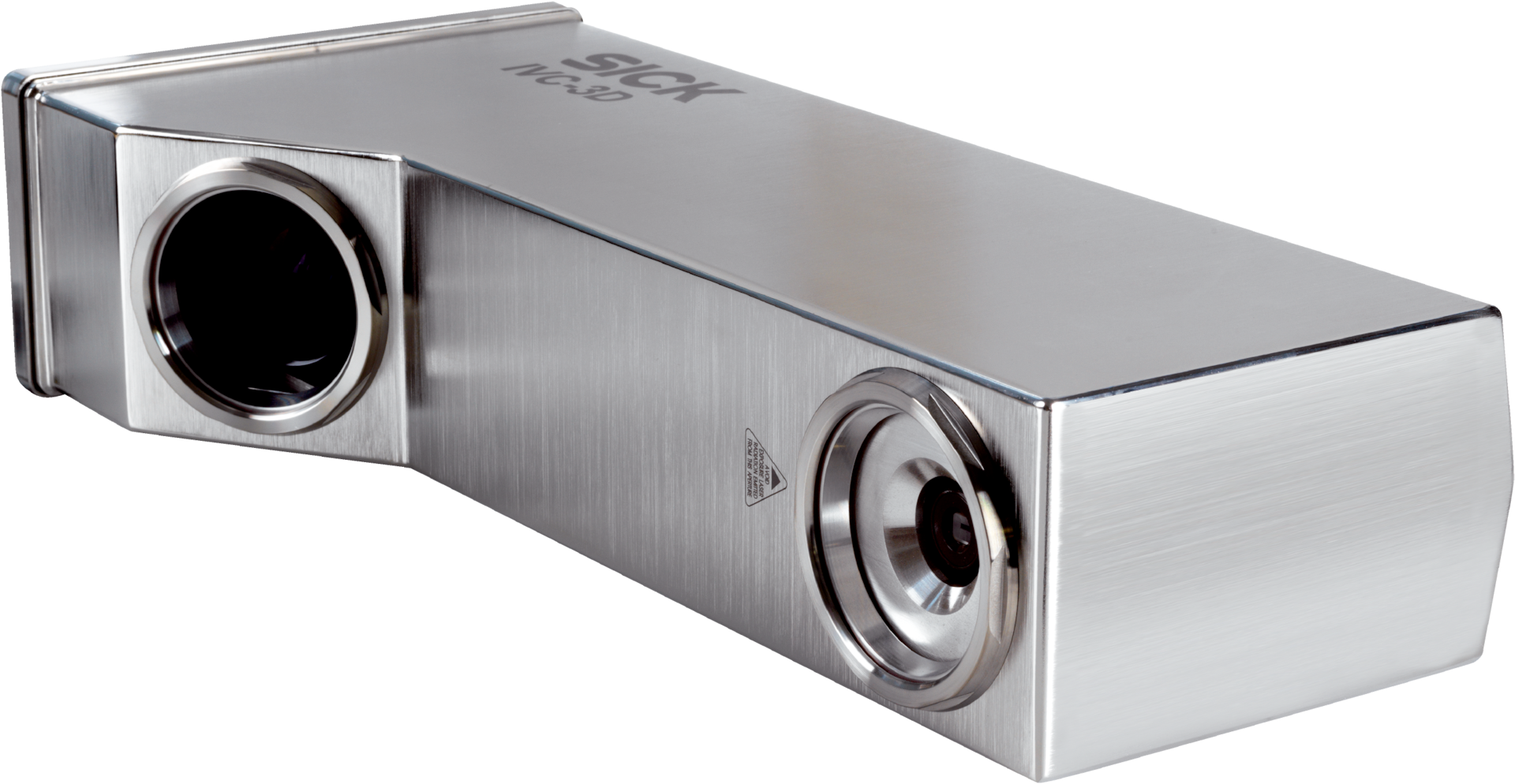

IVC-3D11113 1048004 N/A SICK – Phased out

IVC-3D11113 1048004 N/A SICK IVC-3D > IVC-3D11113 CE|RCM

Task	Presence inspection Quality inspection Measuring, 3D
Technology	3D line scanning
Product category	Programmable
Working distance	300 mm … 677 mm 1)
Example field of view	200 mm x 600 mm
Light source Internal lighting Laser, Visible, Red, 658 nm, ± 15 nm	Light source
Light source
Internal lighting	Laser, Visible, Red, 658 nm, ± 15 nm
Laser class	2 (IEC 60825-1:2014, EN 60825-1:2014)
Factory calibrated	✔
Width at minimum operating distance	436 mm
Width at maximum operating distance	810 mm
Maximum height range	377 mm
Imaging angle	58°
Offline support	Emulator
Connection type	M12, 4-pin female connector, D-coded (Ethernet)M12, 8-pin female connector (RS-485)M12, 8-pin male connector, A-coded (voltage supply, I/O)M12, 5-pin male (Encoder)
Connector material	Stainless steel
Supply voltage	24 V DC, ± 20 %
Ripple	< 5 Vpp
Current consumption	< 1 A, without output load
Enclosure rating	IP67
Protection class	III
Housing material	Stainless steel
Window material	PMMA
Weight	6.7 kg
Dimensions (L x W x H)	404 mm x 103 mm x 187 mm
Image sensor	CMOS
Processor	800 MHz
Scan/frame rate	5,000 3D profiles/s
Memory	128 MB RAM, 16 MB flash
Typical height resolution	0.2 mm
3D profile resolution	2,048 points
Ethernet✔ , TCP/IP, UDP/IPRemarkIncluding OPC serverData transmission rate10/100 MBit/s	Ethernet
Ethernet	✔ , TCP/IP, UDP/IP
Remark	Including OPC server
Data transmission rate	Maximum encoder frequency: 2 MHz
EtherNet/IP™✔Data transmission rate10/100 MBit/s	EtherNet/IP™
EtherNet/IP™	✔
Serial✔ , RS-422, RS-485FunctionEncoder (RS-422)Data transmission rateMaximum encoder frequency: 2 MHz	Serial
Serial	✔ , RS-422, RS-485
Function	Encoder (RS-422)
Operator interfaces	Application-specific user interfaces can be set up as stand-alone web pages. The integrated OPC server supports data exchange with SCADA systems, for example.
Configuration software	IVC Studio
Data storage and retrieval	Images and data can be stored to and retrieved from flash and external FTP servers
Digital input	3 program controlled inputs (1 trigger input), HIGH = 10 V … 28.8 V
Digital output	3 programmable type B digital outputs, Max. output current 100 mA, trigger output
Encoder interface	RS-422
Maximum encoder frequency	2 MHz
Shock load	15 g, 3 x 6 directions
Vibration load	5 g, 58 Hz … 150 Hz
Ambient operating temperature	0 °C … +40 °C
Storage temperature	–20 °C … +70 °C
EU declaration of conformity	✔
ACMA declaration of conformity	✔
China RoHS	✔
ECLASS 5.0	27310205
ECLASS 5.1.4	27310205
ECLASS 6.0	27310205
ECLASS 6.2	27310205
ECLASS 7.0	27310205
ECLASS 8.0	27310205
ECLASS 8.1	27310205
ECLASS 9.0	27310205
ECLASS 10.0	27310205
ECLASS 11.0	27310205
ECLASS 12.0	27310205
ETIM 5.0	EC001820
ETIM 6.0	EC001820
ETIM 7.0	EC001820
ETIM 8.0	EC001820
UNSPSC 16.0901	43211731
header	value
Unit weight	8.817 Kilograms
Net unit weight	8.817 Kilograms
Unit volume	23055 Cubic Centimetres (cm³)
Country of origin	Germany
EAN	4047084198878
