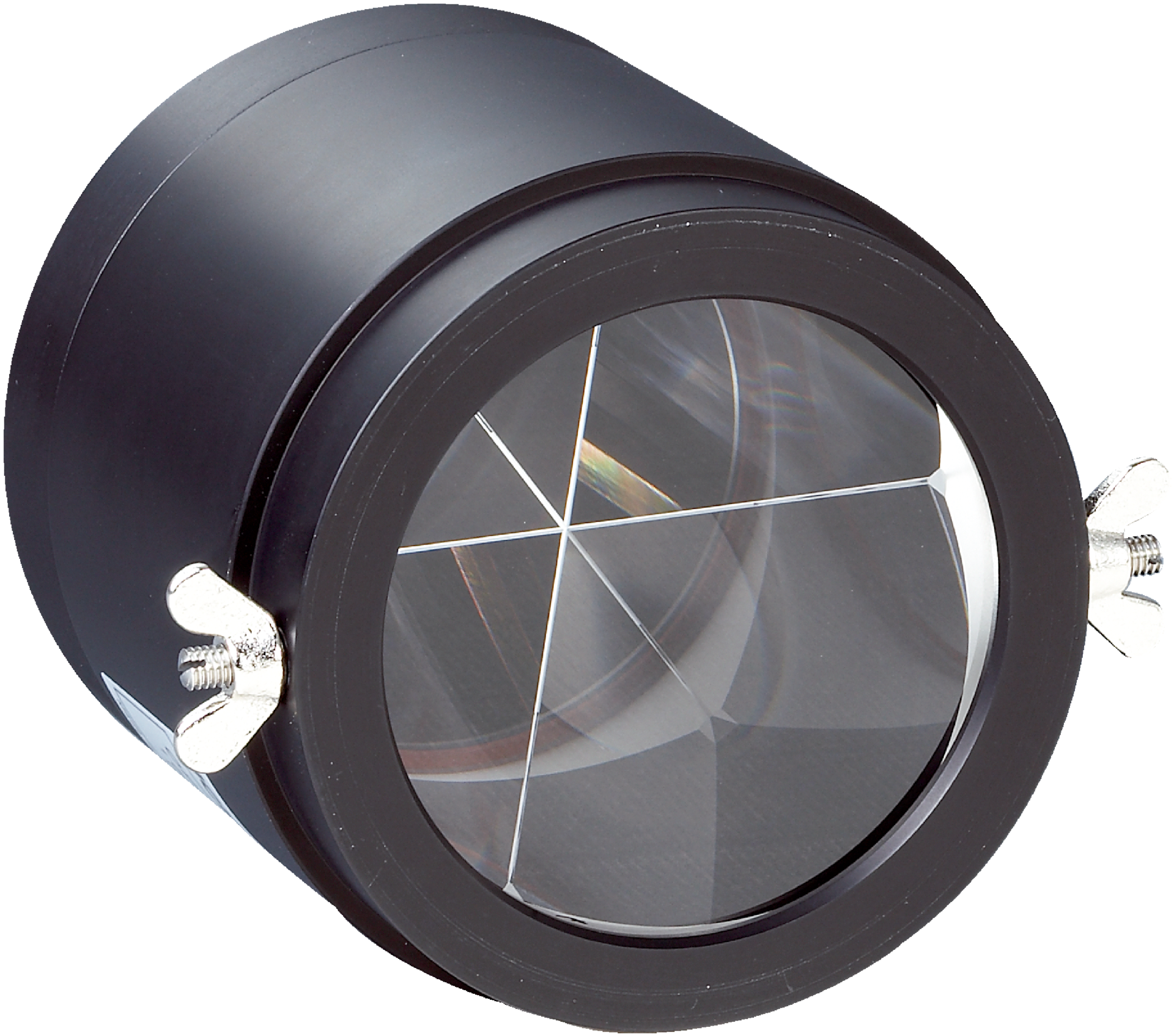

OP60-20 1000136 Reflectors and optics: Reflectors SICK Products Accessories Reflectors and optics > Accessories > Reflectors and optics > Reflectors > OP60-20
| Product segment | Reflectors and optics |
|---|---|
| Product | Reflectors |
| Product version | Special reflectors |
| Description | Single triple glass reflector for the greatest scanning ranges, focus = 20 m, screw connection |
| Mounting system type | Screw-on |
| Material | Aluminum (anodized) / glass |
| Ambient operating temperature | –20 °C … +65 °C |
| Diameter | 82Â mm |
| ECLASS 5.0 | 27279203 |
| ECLASS 5.1.4 | 27279203 |
| ECLASS 6.0 | 27279203 |
| ECLASS 6.2 | 27279203 |
| ECLASS 7.0 | 27279203 |
| ECLASS 8.0 | 27279203 |
| ECLASS 8.1 | 27279203 |
| ECLASS 9.0 | 27273601 |
| ECLASS 10.0 | 27273601 |
| ECLASS 11.0 | 27273601 |
| ECLASS 12.0 | 27273601 |
| ETIM 5.0 | EC002467 |
| ETIM 6.0 | EC002467 |
| ETIM 7.0 | EC002467 |
| ETIM 8.0 | EC002467 |
| UNSPSC 16.0901 | 39111827 |
| header | value |
| Unit weight | 0.924 Kilograms |
| Net unit weight | 0.924 Kilograms |
| Unit volume | 1200 Cubic Centimetres (cm³) |
| Country of origin | Germany |
| EAN | 4047084113833 |
