SICK PBS2-RB010SF2FSDLMA0Z – Pressure Sensor PBS plus Series (0–10 bar, IO-Link, LED Display)
Product Overview

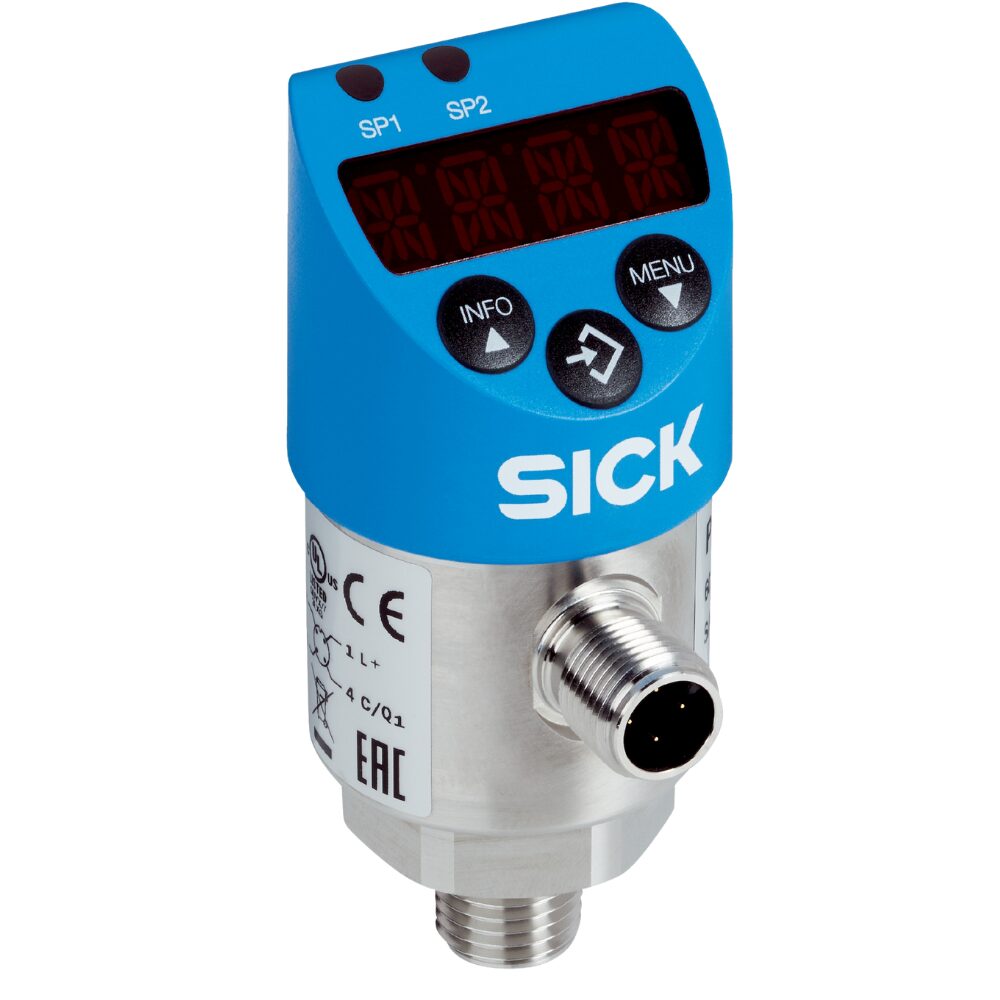

The SICK PBS2 Pressure Sensor (PBS plus series) is a robust and versatile sensor designed for monitoring liquid and gaseous media. With a measuring range of 0 to 10 bar (0–145 psi), it provides reliable gauge pressure measurement across a wide range of industrial applications.

Equipped with an easy-to-read red LED 4-digit display, IO-Link communication, and flexible output options (PNP/NPN + analog), the PBS2 ensures accurate pressure monitoring with maximum integration flexibility. Its rotatable housing and display allow convenient installation and operation in tight or complex machine layouts.

Key Features

Measuring range: 0–10 bar / 0–145 psi

Compatible with liquids and gases

Output signal options: IO-Link, PNP, NPN, and analog (0–10 V / 4–20 mA)

330° rotatable display and 320° rotatable housing for flexible mounting

4-digit red LED display, 14-segment, with electronic 180° rotation

Fast response with adjustable update rates (1,000, 500, 200, 100 ms)

Robust design for demanding industrial environments

European CE, UKCA, cULus certified

Technical Specifications
Parameter Details
Manufacturer SICK
Series PBS plus
Model PBS2-RB010SF2FSDLMA0Z
Part No. 6073936
Medium Liquid, gaseous
Pressure Type Gauge pressure
Measuring Range 0 … 10 bar / 0 … 145 psi
Output Signals IO-Link / PNP / NPN + Analog (0–10 V, 4–20 mA)
Max. Ohmic Load (RA) 4–20 mA: ≤ 0.5 kΩ / 0–10 V: > 10 kΩ
Zero Point Adjustment Max. +3% of span
Display 14-segment LED, red, 4-digit, 9 mm height
Update Rates 100 / 200 / 500 / 1,000 ms
Display Rotation 180° (electronic)
Housing Rotation 320°
Display vs Housing 330°
Process Temperature –20 °C … +85 °C
Certifications CE, UKCA, cULus, IO-Link
Applications

Hydraulic and pneumatic pressure monitoring

Process control in liquid and gas systems

Machine building and automation technology

Food, packaging, and logistics industries

Industrial equipment monitoring with IO-Link integration

Why Choose the SICK PBS2 Pressure Sensor?

✔ Wide pressure range with high accuracy
✔ Flexible communication via IO-Link + standard outputs
✔ Easy to install thanks to rotatable housing and display
✔ Durable design for harsh industrial conditions
✔ Trusted SICK quality with CE, UKCA, and cULus approvals
