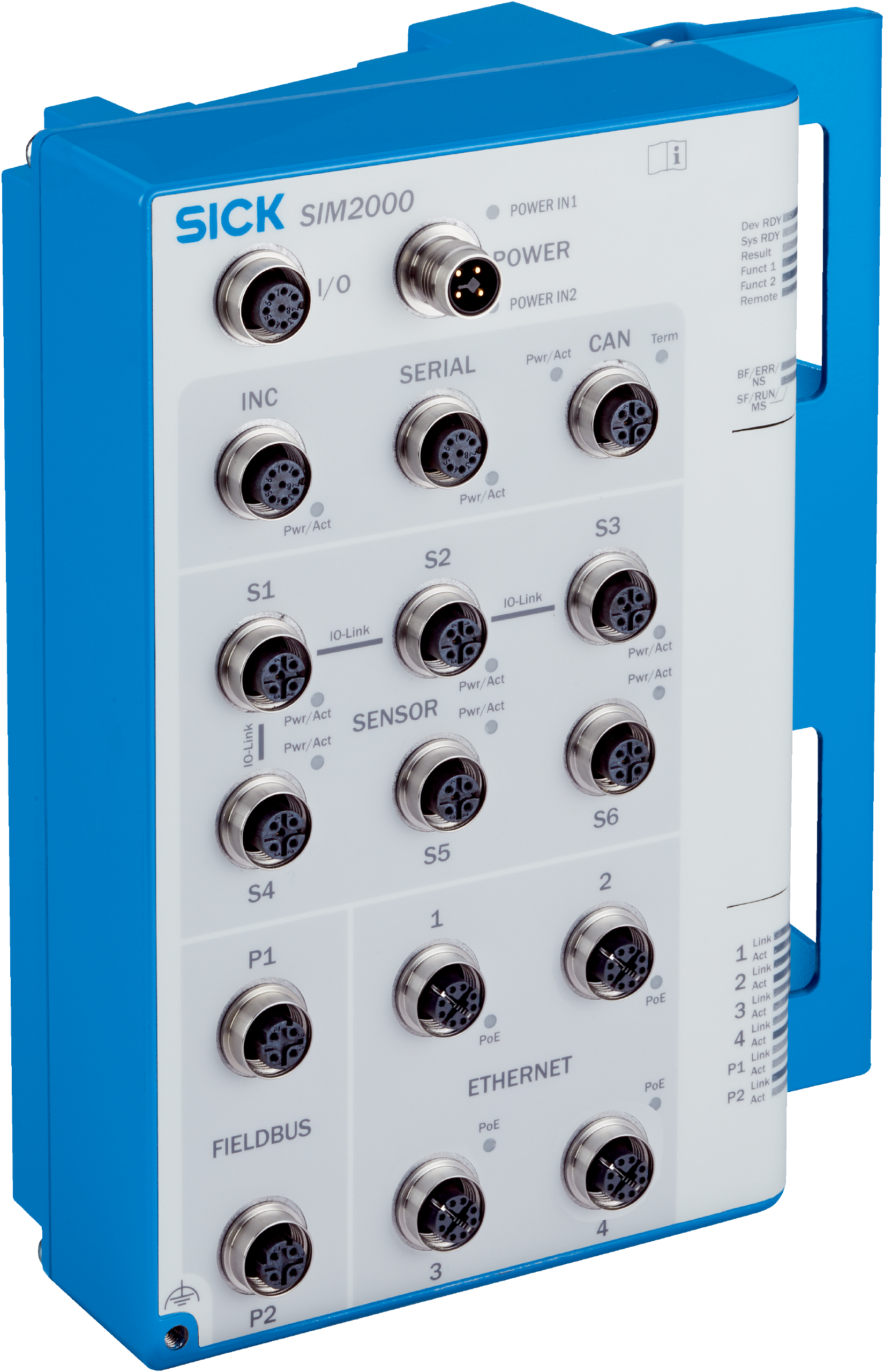

SIM2000-2P04G10 1081902 Edge computing devices: SIM2x00 SICK

Description

SIM2000-2P04G10 1081902 Edge computing devices: SIM2x00 SICK Products Network and connection technology Edge computing devices > Network and connection technology > Edge computing devices > SIM2x00 > SIM2000-2P04G10 CE|RCM|UKCA

Product category	Programmable
Generation	Second generation
Supported products	2D and 3D cameras from SICK or based on the GigE machine vision standard 2D and 3D LiDAR sensors Image-based code readers Bar code scanners RFID read/write device Displacement measurement sensors Incremental and absolute encoders Photoelectric sensors
Processor	8-core ARM Cortex-A72 CPU with NEON accelerator
Random Access Memory	4 GB DDR4
Flash memory	7 GB eMMC, of which 5 GB are available for applications
Programming software	SICK AppStudio Can be programmed within the SICK AppSpace environment
Toolkit	SICK algorithm API
Further functions	FPGA for I/O handling Dedicated fieldbus controller
ConnectionsI/O, Power, SERIAL, INC, Fieldbus, CAN, SENSOR S1-S4, SENSOR S5-S6, Ethernet with PoE, USB1 x M12, 8-pin female connector, A-coded, 1 x M12, 4-pin male connector, T-coded, 1 x M12, 8-pin female connector, A-coded, 1 x M12, 8-pin female connector, A-coded, 2 x M12, 4-pin female connector, D-coded, 1 x M12, 5-pin female connector, A-coded, 4 x M12, 5-pin female connector, A-coded, 2 x M12, 5-pin female connector, A-coded, 4 x M12, 8-pin female connector, X-coded, 1 x Micro-B, Under the servicing panel, Under the servicing panel	Connections
Connections
I/O, Power, SERIAL, INC, Fieldbus, CAN, SENSOR S1-S4, SENSOR S5-S6, Ethernet with PoE, USB	1 x M12, 8-pin female connector, A-coded, 1 x M12, 4-pin male connector, T-coded, 1 x M12, 8-pin female connector, A-coded, 1 x M12, 8-pin female connector, A-coded, 2 x M12, 4-pin female connector, D-coded, 1 x M12, 5-pin female connector, A-coded, 4 x M12, 5-pin female connector, A-coded, 2 x M12, 5-pin female connector, A-coded, 4 x M12, 8-pin female connector, X-coded, 1 x Micro-B, Under the servicing panel, Under the servicing panel
Supply voltage	24 V DC, ± 10 %
Power consumption	Typ. 45 W, without connected sensor
Power output	140 W, total, all connections
Output currentSENSOR S1-S4≤ 1 A (on power supply pin)SENSOR S5-S6≤ 2.5 A (on power supply pin)SENSOR S5-S6≤ 3.2 A (≤ 10 kHz, rise time/fall time/delay < 10μs when power gate-API used)CAN≤ 1 A (on power supply pin)SERIAL≤ 0.5 A (on power supply pin)INC≤ 500 mA (on power supply pin)I/O≤ 500 mA (on power supply pin)	Output current
Output current
SENSOR S1-S4	1 input/output each (can be configured) (Max. frequency: 30 kHz)
SENSOR S5-S6	2 inputs/outputs each (can be configured) (Max. frequency: 30 kHz)
CAN	✔
SERIAL	≤ 0.5 A (on power supply pin)
INC	≤ 500 mA (on power supply pin)
I/O	2 inputs/outputs (can be configured) (Max. frequency: 30 kHz)
Enclosure rating	IP65
Protection class	III
Electrical safety	EN 61010
Housing material	Aluminum die cast
Housing color	Light blue (RAL 5012)
Weight	1,995 g
Dimensions (L x W x H)	176 mm x 83 mm x 196 mm
Ethernet✔ (4) , TCP/IP, FTP, OPC UA, MQTTType of fieldbus integrationGigE machine vision/GenICAMRemarkFieldbus ports, in preparationFunctionData output, Configuration, firmware update, image transmissionData transmission rate20 kbit/s … 230 kBaud, 10/100/1,000/2,500 Mbit/s	Ethernet
Ethernet	✔ (4) , TCP/IP, FTP, OPC UA, MQTT
Type of fieldbus integration	GigE machine vision/GenICAM
Remark	SENSOR S1-S4
Function	For configuration
Data transmission rate	Max. frequency 2 MHz; RS-422: 2 MBaud
PROFINET✔ (2) , RS-232, RS-422, RS-485RemarkFieldbus-PortsFunctionDual port Ethernet-based fieldbus, Also configurable as RS-422, firmware updateData transmission rate≤ 1 Mbit/s, 10/100 MBit/s	PROFINET
PROFINET	✔ (2) , RS-232, RS-422, RS-485
EtherNet/IP™✔ (2) , RS-422RemarkFieldbus ports, in preparationFunctionDual port Ethernet-based fieldbus, diagnosisData transmission rate10/100 MBit/s	EtherNet/IP™
EtherNet/IP™	✔ (2) , RS-422
EtherCAT®✔ (2) , USB 2.0RemarkSENSOR S1-S4FunctionDual port Ethernet-based fieldbusData transmission rate10/100 MBit/s	EtherCAT®
EtherCAT®	✔ (2) , USB 2.0
IO-Link✔ (4) , RS-232RemarkSENSOR S1-S4FunctionIO-Link Master 1.1Data transmission rateRS-232: 115,2 kBaud, RS-422/RS-485: 2 MBaud	IO-Link
IO-Link	✔ (4) , RS-232
Serial✔ , RS-422FunctionCan also be configured as an encoder interface, max. frequency 2 MHzData transmission rateMax. frequency 2 MHz; RS-422: 2 MBaud	Serial
Serial	✔ , RS-422
Incremental✔ (4)FunctionInterface for encoder	Incremental
Incremental	✔ (4)
CAN✔FunctionSICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server) with activatable termination resistor	CAN
USB✔FunctionFor configuration	USB
USB	✔
Operator interfaces	Web server (GUI), SICK AppStudio (programming), SICK AppManager (app installation, firmware update)
Data storage and retrieval	Image and data logging via optional microSD memory card, internal RAM and external FTP
Memory card(s)	Industry-grade microSD memory card (flash card), max. 32 GB, optional
Digital inputs/outputsI/O2 opto-decoupled inputs (Max. frequency: 30 kHz)I/O2 inputs/outputs (can be configured) (Max. frequency: 30 kHz)SENSOR S1-S41 input each (Max. frequency: 30 kHz)SENSOR S1-S41 input/output each (can be configured) (Max. frequency: 30 kHz)SENSOR S5-S61 input each (Max. frequency: 10 kHz)SENSOR S5-S62 inputs/outputs each (can be configured) (Max. frequency: 30 kHz)	Digital inputs/outputs
Digital inputs/outputs
Control elements	1 selector switch (under the servicing panel)1 functional button (under the servicing panel)
Electromagnetic compatibility (EMC)	IEC 61000-6-2:2016EN IEC 61000-6-2:2019IEC 61000-6-3:2020
Shock load	IEC 60068-2-27:2008
Ambient operating temperature	0 °C … +50 °C 1) 2)
Ambient temperature, storage	–20 °C … +70 °C 1)
EU declaration of conformity	✔
UK declaration of conformity	✔
ACMA declaration of conformity	✔
China RoHS	✔
ECLASS 5.0	27242208
ECLASS 5.1.4	27242608
ECLASS 6.0	27242608
ECLASS 6.2	27242608
ECLASS 7.0	27242608
ECLASS 8.0	27242608
ECLASS 8.1	27242608
ECLASS 9.0	27242608
ECLASS 10.0	27242608
ECLASS 12.0	27244090
ETIM 5.0	EC001604
ETIM 6.0	EC001604
ETIM 7.0	EC001604
ETIM 8.0	EC001604
UNSPSC 16.0901	32151705
header	value
Unit weight	2.331 Kilograms
Net unit weight	2.331 Kilograms
Unit volume	6384 Cubic Centimetres (cm³)
Country of origin	Germany
EAN	4047084500725
