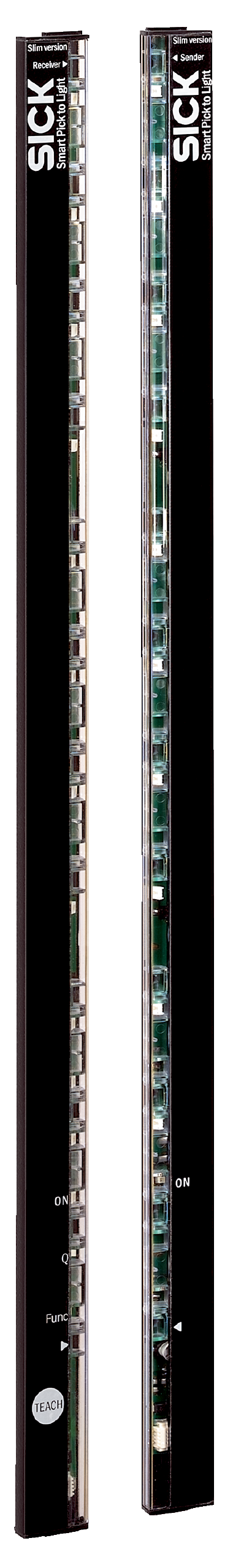

SPL-S440PPS2W04 1045018 Automation light grids: SLG SICK Products Detection sensors Automation light grids > Detection sensors > Automation light grids > SLG > SPL-S440PPS2W04 CE|RCM|UKCA
| Sensor principle | Sender/receiver |
|---|---|
| Minimum detectable object (MDO) | Parallel beam, 45Â mm |
| Beam separation | 40Â mm |
| Optical light exit | Slim |
| Number of beams | 12 |
| Detection height | 440Â mm |
| Parameterization | None |
| Cross beam/parallel beam | Parallel beam active |
| Output 1 | Output 1Â active, if light beam interrupted |
| Muting function | Muting function deactivated |
| Automatic teach | Automatic teach active |
| Alignment aid | Without alignment aid |
| Light source | Infrared light |
| Wave length | 950Â nm |
| Supply voltage Vs | DC24 V, ± 20 % |
| Power consumption receiver | ≤ 50 mA |
| Ripple | <Â 5Â Vpp |
| Output current Imax. | ≤ 100 mA |
| Output load, capacitive | 100Â nF |
| Output load, Inductive | 1Â H |
| Initialization time | 1Â s |
| Switching output | PNP |
| Inputs | Job LED |
| Dimensions (W x H x D) | 36.5 mm x 512.4 mm x 12.4 mm |
| Connection type | Cable with M8 male connector, 4-pin |
| Housing material | PMMA |
| Display | LED |
| Synchronization | Optical |
| Enclosure rating | IP65 |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Protection class | III |
| Weight | 60Â g |
| Pulse frequency | 500Â kHz |
| Aluminum stabilizer | With stabilizer |
| Maximum range | 3 m 1) |
| Minimum range | Parallel beam: ≥ 0 m 2) |
| Operating range | 1.5Â m |
| Response time | Parallel beam, 19Â ms |
| Shock resistance | 10 g / DIN EN 60068-2-29 / 16 ms |
| Vibration resistance | 5 g, 10 Hz … 55 Hz (IEC 68-2-6) |
| EMC | ENÂ 60947-5-2 |
| Ambient light immunity | Direct: 100,000 lx 1)Indirect: 150,000 lx |
| Ambient operating temperature | –25 °C … +55 °C |
| Ambient temperature, storage | –25 °C … +70 °C |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
| ECLASS 5.0 | 27270910 |
| ECLASS 5.1.4 | 27270910 |
| ECLASS 6.0 | 27270910 |
| ECLASS 6.2 | 27270910 |
| ECLASS 7.0 | 27270910 |
| ECLASS 8.0 | 27270910 |
| ECLASS 8.1 | 27270910 |
| ECLASS 9.0 | 27270910 |
| ECLASS 10.0 | 27270910 |
| ECLASS 11.0 | 27270910 |
| ECLASS 12.0 | 27270910 |
| ETIM 5.0 | EC002549 |
| ETIM 6.0 | EC002549 |
| ETIM 7.0 | EC002549 |
| ETIM 8.0 | EC002549 |
| UNSPSC 16.0901 | 39121528 |
| header | value |
| Unit weight | 0.521 Kilograms |
| Net unit weight | 0.521 Kilograms |
| Unit volume | 7865 Cubic Centimetres (cm³) |
| Country of origin | Hungary |
| EAN | 4047084205095 |
