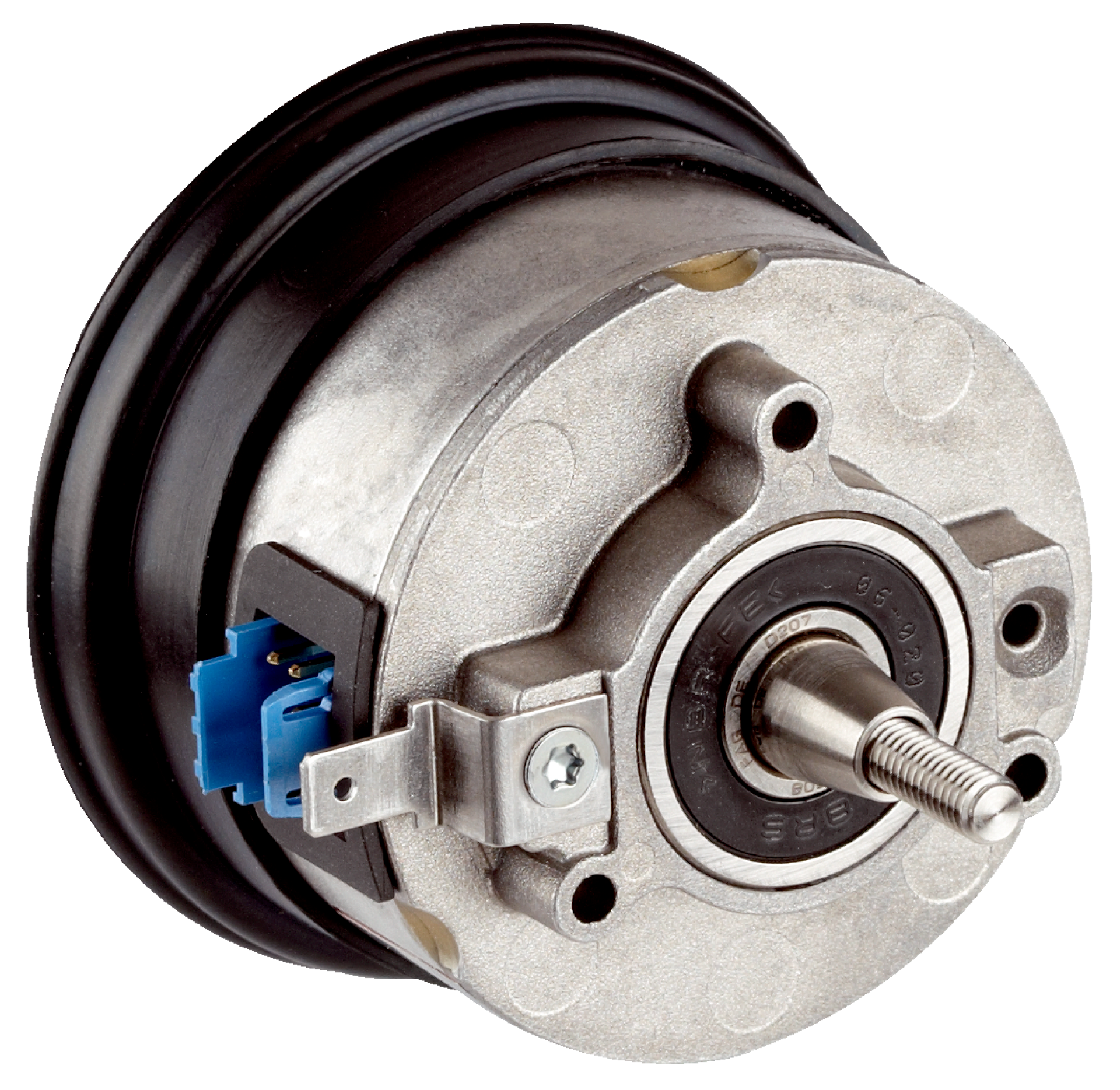

SRS50S-HEA0-K22 1051806 N/A SICK SRS/SRM50-S > SRS50S-HEA0-K22 CE|RCM|UKCA
| Items supplied | Mounting screws for stator coupling or servo clamps not included with delivery. |
|---|---|
| Safety integrity level | SIL 2 (IEC 61508), SILCL2 (IEC 62061) |
| Category | 3 (EN ISO 13849) |
| Maximum demand rate | Continuous (analog signals) |
| Performance level | PL d (EN ISO 13849) 1) |
| PFH (mean probability of a dangerous failure per hour) | 1.0 x 10-8 2) |
| TM (mission time) | 20 years (EN ISO 13849) |
| MTTFD (mean time to dangerous failure) | 1,073 years (EN ISO 13849) |
| Sine/cosine periods per revolution | 1,024 |
| Number of the absolute ascertainable revolutions | 1 |
| Total number of steps | 32,768 |
| Measuring step | 0.3 ″ For interpolation of the sine/cosine signals with, e. g., 12 bits |
| Integral non-linearity | Typ. ± 45 ″, Error limits for evaluating sine/cosine period, without mechanical tension of the stator coupling |
| Differential non-linearity | ± 7 ″ |
| Operating speed | ≤ 12,000 min⁻¹ |
| Available memory area | 1,792 Byte |
| System accuracy | ± 52 ″ |
| Type of code for the absolute value | Binary |
| Code sequence | Increasing, when turning the shaft For clockwise rotation, looking in direction “A” (see dimensional drawing), For clockwise shaft rotation, looking in direction “A” (see dimensional drawing) |
| Communication interface | HIPERFACE® |
| Connection type | Male connector, 8-pin, radial |
| Supply voltage | 7 V DC … 12 V DC |
| Recommended supply voltage | 8 V DC |
| Current consumption | 80 mA 1) |
| Output frequency for sine/cosine signals | ≤ 200 kHz |
| Shaft version | Tapered shaft |
| Flange type / stator coupling | Rubber support, Rubber support |
| Dimensions | See dimensional drawing |
| Weight | ≤ 0.2 kg |
| Moment of inertia of the rotor | 10 gcm² |
| Angular acceleration | ≤ 200,000 rad/s² |
| Operating torque | 0.2 Ncm |
| Start up torque | + 0.4 Ncm |
| Permissible movement static | ± 0.3 mm, radial± 0.75 mm, axial |
| Permissible movement dynamic | ± 0.1 mm, radial± 0.2 mm, axial |
| Angular motion perpendicular to the rotational axis, static | ± 0.005 mm/mm |
| Angular motion perpendicular to the rotational axis, dynamic | ± 0.0025 mm/mm |
| Life of ball bearings | 3.6 x 109 revolutions |
| Operating temperature range | –30 °C … +115 °C |
| Storage temperature range | –40 °C … +125 °C, without package |
| Relative humidity/condensation | 90 %, Condensation not permitted |
| Resistance to shocks | 100 g, 10 ms, 10 ms (according to EN 60068-2-27) |
| Frequency range of resistance to vibrations | 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) |
| EMC | According to EN 61000-6-2 and EN 61000-6-3 1) |
| Enclosure rating | IP40, with mating plug inserted (IEC 60529) |
| Operating height (above sea level) | 2,000 m |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
| ECLASS 5.0 | 27270590 |
| ECLASS 5.1.4 | 27270590 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270590 |
| ECLASS 8.0 | 27270590 |
| ECLASS 8.1 | 27270590 |
| ECLASS 9.0 | 27270590 |
| ECLASS 10.0 | 27273805 |
| ECLASS 11.0 | 27273901 |
| ECLASS 12.0 | 27273901 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
| header | value |
| Unit weight | 0.233 Kilograms |
| Net unit weight | 0.233 Kilograms |
| Unit volume | 2065.5 Cubic Centimetres (cm³) |
| Country of origin | Germany |
| EAN | 4047084512605 |
