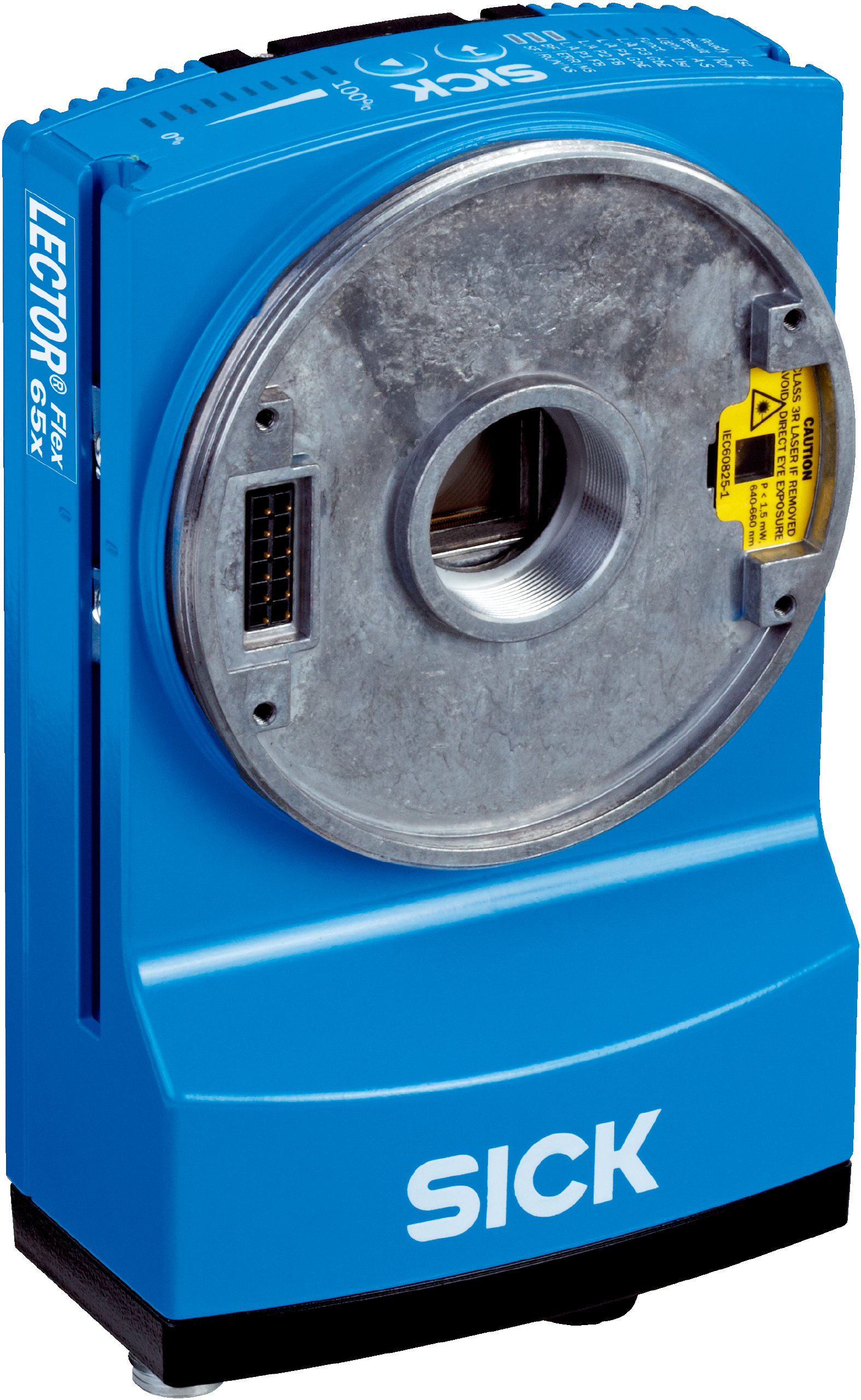

V2D654R-MCXXA6 1060892 Image-based code readers: Lector64x/Lector65x SICK Products Machine vision and identification Image-based code readers > Machine vision and identification > Image-based code readers > Lector64x/Lector65x > V2D654R-MCXXA6 CE|cULus|RCM|UKCA
| Variant | Main unit |
|---|---|
| Optical focus | Adjustable focus (manual) |
| Sensor | CMOS monochrome |
| Sensor resolution | 2,048 px x 2,048 px (4.2 Mpixel) |
| Illumination | To be ordered separately as accessories |
| Alignment aid | Laser, Red, 630 nm … 680 nm |
| Laser class | 1, Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed.3., as described in “Laser Notice No. 56” dated May 8, 2019 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021) |
| Lens C-mount Optical format 1″ Note To be ordered separately as accessories |
Lens |
| Lens | C-mount |
| Optical format | 1″ |
| Note | To be ordered separately as accessories |
| Scanning frequency | 40 Hz, With resolution of 4 megapixels |
| Code resolution | ≥ 0.1 mm 1) |
| Working range | 300 mm … 2,200 mm 1) 2) |
| Connection type | 1 x M12, 17-pin plug (serial, CAN, I/Os, power supply)2 x M12, 8-pin socket (Ethernet, P1 not yet with function)1 x M8, 4-pin socket (USB) |
| Supply voltage | 24 V DC, ± 20 % |
| Power consumption | Typ. 20 W, ± 20 % |
| Output current | ≤ 100 mA |
| Housing material | Aluminum die cast |
| Housing color | Light blue (RAL 5012) |
| Window material | Plastic (To be ordered separately as accessories)Glass (To be ordered separately as accessories) |
| Enclosure rating | IP65 (EN 60529 (1991-10), EN 60529/A2 (2002-02)) |
| Protection class | III |
| Electrical safety | EN 60950-1 (2011-01) |
| Weight | 635 g |
| Dimensions (L x W x H) | 142 mm x 89 mm x 46 mm 1) |
| MTBF | 100,000 h |
| Readable code structures | 1D codes, Stacked, 2D codes |
| Bar code types | GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, USPS (Postnet, Planet, USPS4SCB), Australian Post, Dutch KIX Post, Royal Mail, Swedish Post |
| 2D code types | Data Matrix ECC200, GS1 Data-Matrix, MaxiCode, QR code |
| Stacked code types | PDF417 |
| Code qualification | On the basis of ISO/IEC 16022, ISO/IEC 15415, ISO/IEC 18004 |
| Internal image storage | 512 MB |
| Ethernet✔ , TCP/IPFunctionData interface (read result output), Service interface, FTP (image transmission)Data transmission rate10/100/1,000 Mbit/s | Ethernet |
| Ethernet | ✔ , TCP/IP |
| Function | SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server) |
| Data transmission rate | 20 kbit/s … 1 Mbit/s |
| PROFINET✔FunctionPROFINET Single Port (integrated), PROFINET Dual Port (optional via external connection module CDF600-2) | PROFINET |
| PROFINET | ✔ |
| EtherNet/IP™✔Data transmission rate10/100/1,000 Mbit/s | EtherNet/IP™ |
| EtherNet/IP™ | ✔ |
| Serial✔ , RS-232, RS-422FunctionData interface (read result output), Service interfaceData transmission rate0.3 kBaud … 115.2 kBaud | Serial |
| Serial | ✔ , RS-232, RS-422 |
| CAN✔FunctionSICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server)Data transmission rate20 kbit/s … 1 Mbit/s | CAN |
| CAN | ✔ |
| PROFIBUS DP✔Type of fieldbus integrationOptional over external fieldbus module CDF600-2 | PROFIBUS DP |
| PROFIBUS DP | ✔ |
| Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
| Digital inputs | 4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional CMC600 parameter memory in CDB650/CDM420) |
| Configurable inputs | Encoder input, external trigger |
| Digital outputs | 6 (CDB650: “Result 1”, “Result 2”, “Result 3”, “Result 4”, 2 external outputs via CMC600 or CDM420: “Result 1”, “Result 2”, 2 external outputs via CMC600 or cable with open end: “Result 1”, “Result 2”, “Result 3”, “Result 4”) |
| Configurable outputs | Good read, External illumination control, free configurable output condition, “device ready” |
| Reading pulse | Digital inputs, non-powered, serial interface, Ethernet, CAN, auto pulse, presentation mode |
| Optical indicators | 21 LEDs (10 x status display, 10 x LED bar graph, 1 green feedback spot) |
| Acoustic indicators | Beeper/buzzer (can be switched off, can be assigned a function to signal a result) |
| Control elements | 2 buttons (choose and start/stop functions) |
| Operator interfaces | Web server |
| Configuration software | SOPAS ET |
| Memory card | Micro SD memory card (flash card) max. 16 GB, optional |
| Data storage and retrieval | Image and data storage via microSD memory card and external FTP |
| EncoderFrequency | Max. 1 kHz |
| External illumination control | Via digital output (max. 24 V trigger) or external illumination connection |
| Electromagnetic compatibility (EMC) | EN 61000-6-2:2005-08 / EN 61000-6-3 (2007-01) |
| Vibration resistance | EN 60068-2-6:2008-02 |
| Shock resistance | EN 60068-2-6 |
| Ambient operating temperature | 0 °C … +50 °C |
| Storage temperature | –20 °C … +70 °C |
| Permissible relative humidity | 90 %, Non-condensing |
| Ambient light immunity | 2,000 lx, on code |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| KC Mark certificate | ✔ |
| Profinet certificate | ✔ |
| BIS registration | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
| 4Dpro | ✔ |
| ECLASS 5.0 | 27280103 |
| ECLASS 5.1.4 | 27280103 |
| ECLASS 6.0 | 27280103 |
| ECLASS 6.2 | 27280103 |
| ECLASS 7.0 | 27280103 |
| ECLASS 8.0 | 27280103 |
| ECLASS 8.1 | 27280103 |
| ECLASS 9.0 | 27280103 |
| ECLASS 10.0 | 27280103 |
| ECLASS 11.0 | 27280103 |
| ECLASS 12.0 | 27280103 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002999 |
| ETIM 8.0 | EC002999 |
| UNSPSC 16.0901 | 43211701 |
| header | value |
| Unit weight | 0.814 Kilograms |
| Net unit weight | 0.814 Kilograms |
| Unit volume | 4930.272 Cubic Centimetres (cm³) |
| Country of origin | Germany |
| EAN | 4047084281372 |
