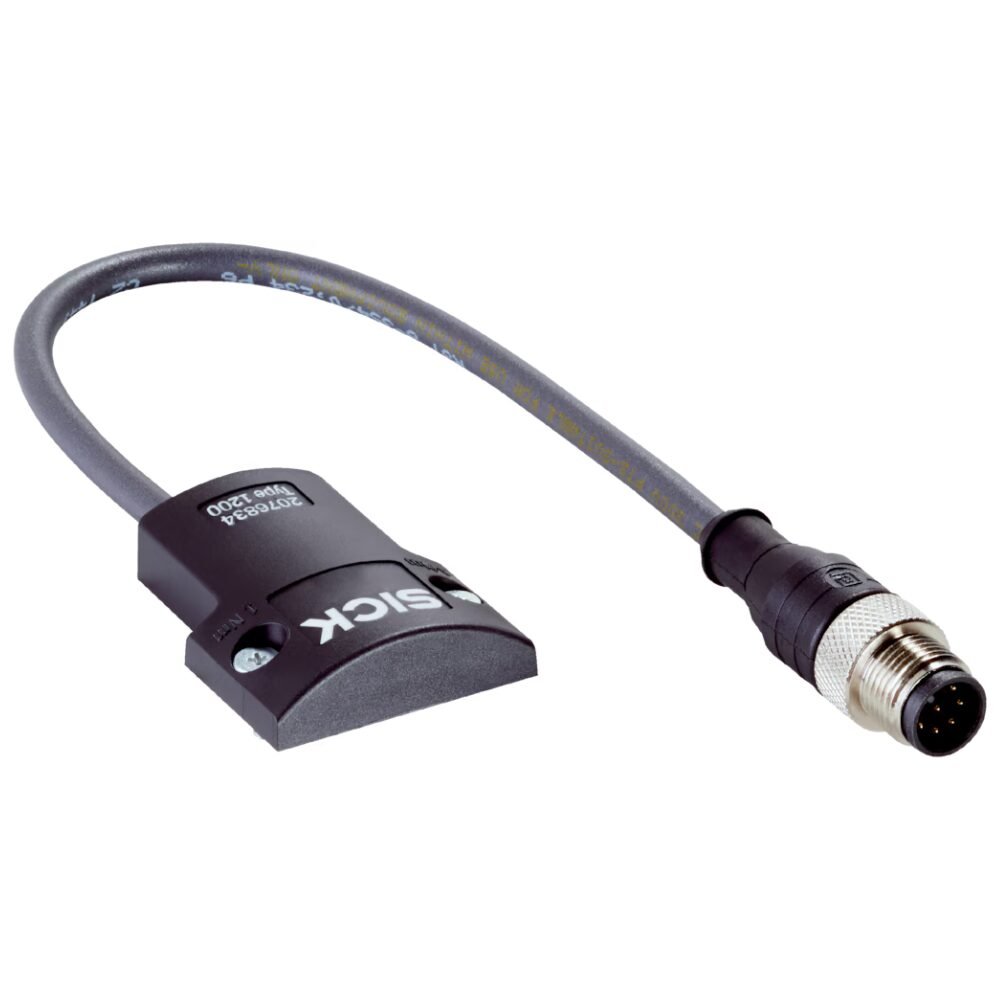

The SP1-1200 system plug (Part No.: 2076834) is a compact safety interface module designed for use with deTec4, deTem4, and deTem4 A/P safety light curtains. It provides seamless system integration and enables essential safety functions through an intuitive DIP switch configuration interface.

🔌 System Compatibility & Interface

Compatible Devices: deTec4, deTem4, deTem4 A/P
Function Range: SP1
System Connection: M12 male connector, 8-pin
Extension Connection: None
Cable Length: 200 mm
Cable Diameter: 5 mm
Pin Assignment: Refer to product documentation

⚙️ Configuration & Safety Functions

Configuration Method: DIP switch (no software needed)
Built-in Safety Features:
- Protective Operation
- Automatic Calibration of protective field width
- Restart Interlock
- External Device Monitoring (EDM)
- Application Diagnostic Output (ADO)

⚡ Electrical Specifications

Protection Class: III (IEC 61140)
Supply Voltage (VS): 24 V DC (range: 19.2 V to 28.8 V)
Ripple: ≤ 10 %

🌡️ Environmental Conditions

Operating Temperature: –30 °C to +55 °C
Storage Temperature: –30 °C to +70 °C
Air Humidity: 15 % to 95 % (non-condensing)
Vibration Resistance: 5 g, 10–55 Hz (IEC 60068-2-6)
Shock Resistance: 10 g, 16 ms (IEC 60068-2-27)

The SP1-1200 system plug enables quick setup and reliable operation of light curtain safety systems. With tool-free DIP switch configuration and built-in safety logic, it’s an excellent choice for applications requiring simplified installation, diagnostics, and compliance with machine safety standards.
