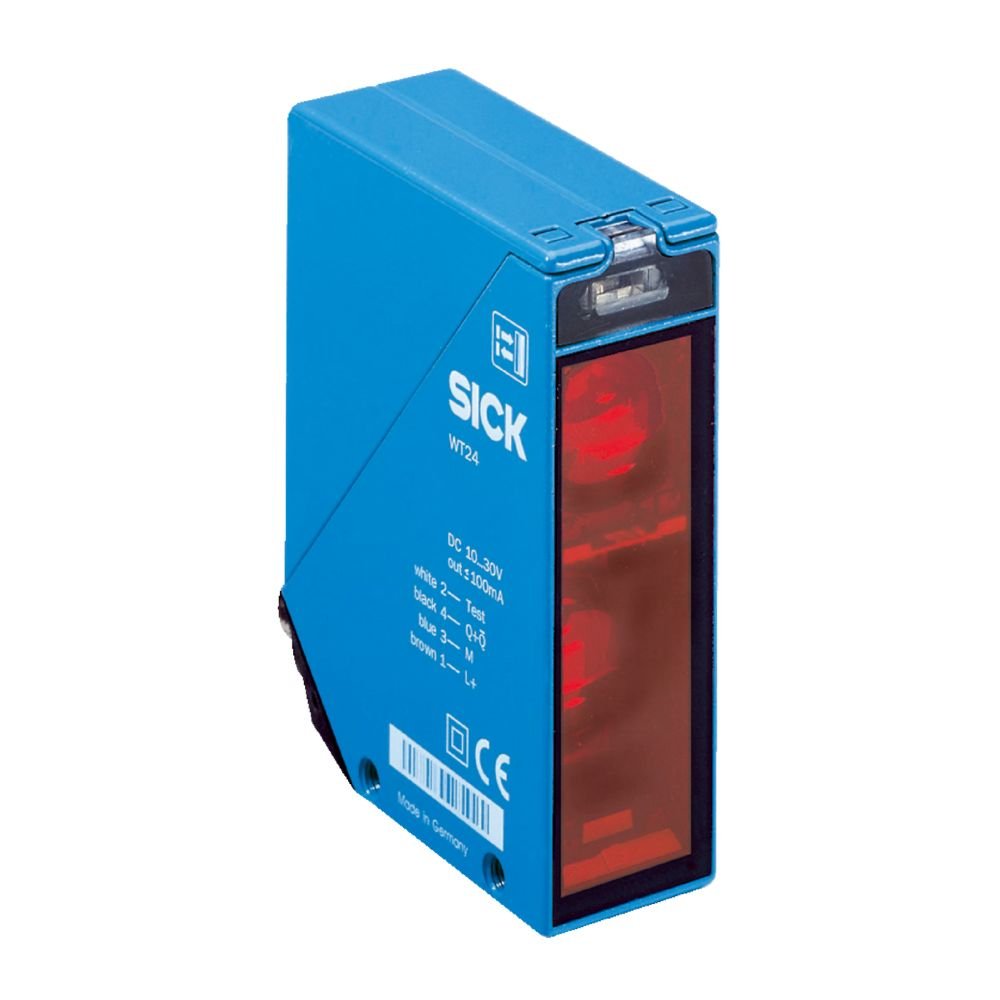

Photoelectric Sensor: W24 – WT24-2B410

Part No.: 1016933

General Information

• Device Type: Photoelectric proximity sensor

• Technology: Background suppression

• Housing Design: Rectangular

• Dimensions (W x H x D): 27 mm × 87.5 mm × 65 mm

• Weight: 330 g

• Light Source: LED (infrared light)

• Wavelength: Not specified

• Light Spot Size: Ø 80 mm at 2,500 mm

• Adjustment: Potentiometer

Sensing Range

• Min to Max Range: 100 mm to 2,500 mm

• Based on: Object with 90% remission (DIN 5033 standard white)

Electrical Specifications

• Supply Voltage (UB): 10 V DC to 30 V DC

• Ripple: < 5 Vpp

• Current Consumption: 50 mA (no load)

• Protection Class: II (Reference voltage: 50 V DC)

• Circuit Protection:

  • A: VS reverse-polarity protected

  • C: Interference suppression

  • D: Output overcurrent/short-circuit protected

Output and Performance

• Switching Output: NPN / PNP

• Switching Mode: Light/dark switching

• Mode Selection: Via PNP/NPN selector and light/dark selector

• Output Current (max): ≤ 100 mA

• Response Time: ≤ 500 µs

• Switching Frequency: 1,000 Hz

• Test Input (Sender Off): TE to 0 V

Connection and Materials

• Connection Type: Male connector M12, 4-pin

• Housing Material: Zinc diecast (metal)

• Optics Material: PMMA (plastic)

• Enclosure Rating: IP69K

Environmental

• Operating Temperature: –40 °C to +60 °C

• Storage Temperature: –40 °C to +75 °C
