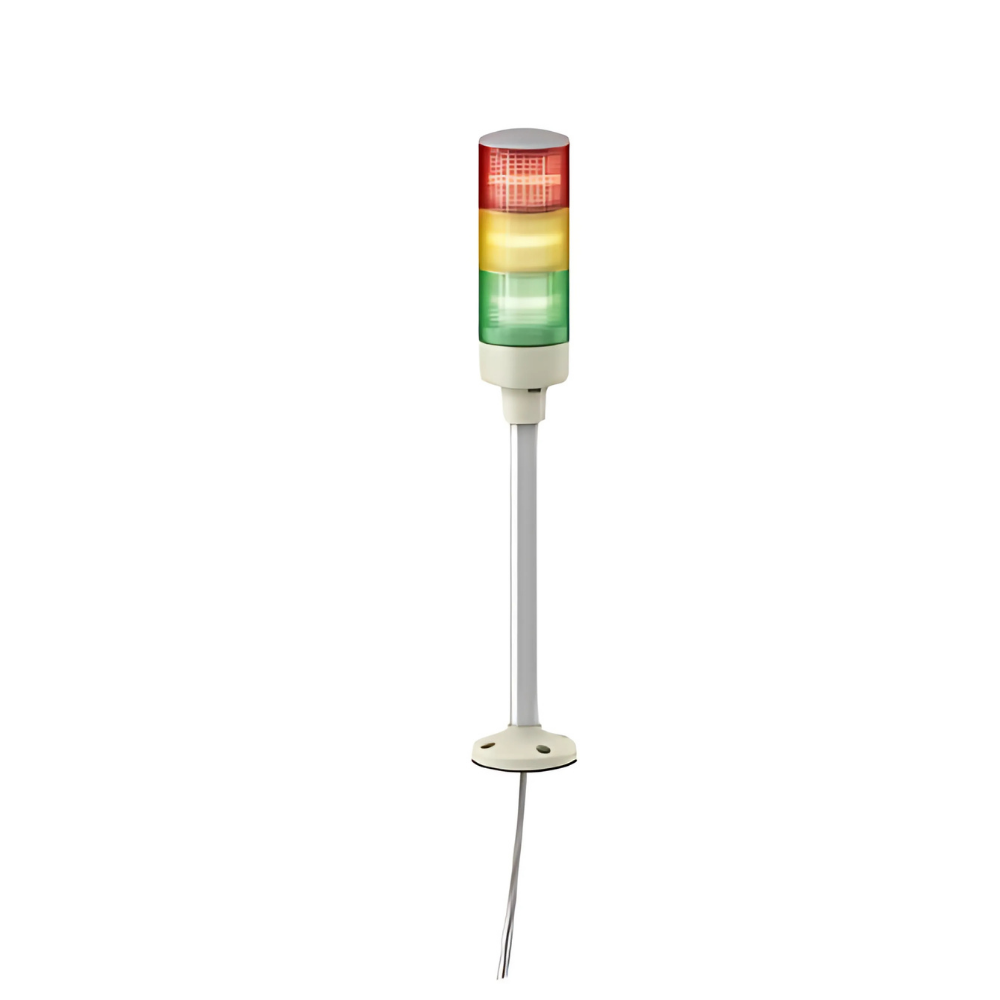

Schneider Electric Harmony XVGB3H – 3-Stack LED Tower Light (Red/Amber/Green, 24V, Tube Mounting)
Product Overview
The Schneider Electric Harmony XVGB3H is a pre-wired, monolithic LED tower light designed for clear and reliable signaling in industrial environments. Featuring three steady illuminated units (Red, Amber, Green), this compact tower light provides instant visual indication of machine or process status.
Built with a durable ABS/PC housing and aluminum tube, the XVGB3H is optimized for harsh conditions and offers IP53 protection. Its 24 V AC/DC LED design ensures low power consumption, long service life, and high visibility, making it ideal for automation, manufacturing, and process monitoring applications.
Key Features
Complete pre-wired tower light for easy installation
3 LED steady light colors: Red, Amber, Green
Tube mounting with fixing plate (60 mm diameter)
24 V AC/DC supply (PNP and NPN compatible)
Low power consumption: 3.1 W total
Current consumption: 109 mA
Durable construction: ABS/PC housing with aluminum tube
Operating temperature: -10 °C to +50 °C
Certifications: CE, EAC
Technical Specifications
Parameter Details
Manufacturer Schneider Electric
Range Harmony XVG
Model XVGB3H
Product Type Monolithic LED tower light (pre-wired)
Stack Units 3 (Red, Amber, Green)
Mounting Type Tube mounting with fixing plate
Mounting Diameter 60 mm
Light Source LED, steady illumination
Rated Voltage 24 V AC/DC
Output Type PNP and NPN
Impulse Withstand Voltage 0.5 kV
Power Consumption 3.1 W
Current Consumption 109 mA
Housing Material ABS body, PC globes, Aluminum tube
Ingress Protection IP53
Operating Temperature -10 … +50 °C
Storage Temperature -35 … +70 °C
Certifications CE, EAC
Net Weight 0.36 kg
Applications
Machine and process status indication
Automation lines and production facilities
Packaging and assembly equipment
Industrial monitoring and safety signaling
Why Choose the Schneider Harmony XVGB3H?
✔ Ready-to-install design – pre-wired for quick setup
✔ Long-lasting LED technology – reduces maintenance costs
✔ Compact and durable build – ideal for industrial environments
✔ Clear visual signaling – improves operational safety and efficiency
