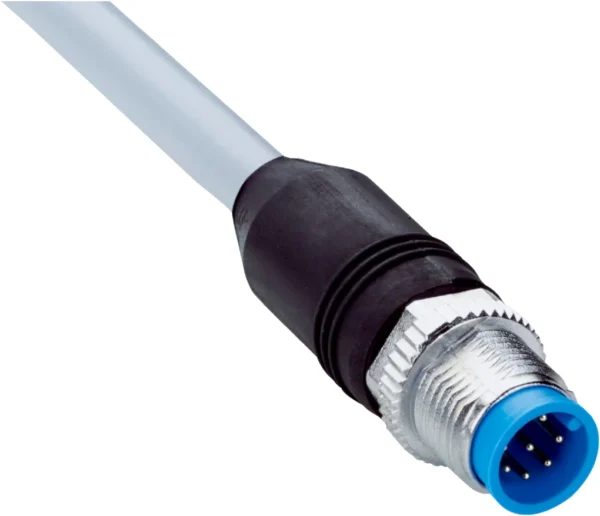

YM2A28-050VA6XLEAX (2096233): Industrial Sensor/Actuator Cable – M12, 8-Pin, Shielded
This high-performance industrial sensor/actuator cable is designed for reliable signal transmission in harsh environments, including chemical zones. With shielding for signal integrity, it is ideal for automation, robotics, and industrial control systems.

Connector Specifications:
Head A: Male connector, M12, 8-pin, straight, A-coded
Head B: Flying leads (for flexible terminations)
Locking Mechanism: Screw connection (ensures secure attachment)
Connector Material: TPU (durable and resistant to industrial environments)
Connector Color: Black
Locking Nut Material: Zinc die-cast, nickel-plated (corrosion-resistant)
Tightening Torque: 0.6 Nm
Width Across Flats: 13 mm
Cable Specifications:
Length: 5 m
Conductor Count: 8 wires
Jacket Material: PVC (durable, flexible, and resistant to chemicals)
Jacket Color: Gray
Cable Diameter: 7 mm
Conductor Cross Section: 0.25 mm²
Shielding: Shielded (reduces electromagnetic interference for stable signal transmission)
Bending Radius:
Stationary Position: > 10x cable diameter
Electrical & Safety Ratings:
Nominal Voltage: 300 V AC
Test Voltage: 2,000 V AC
Reference Voltage:
30 V AC
30 V DC
Rated Impulse Voltage: 0.8 kV
Current Loading: 2 A
Overvoltage Category: III
Insulation Resistance: 100 MΩ
Specific Insulation Resistance: 30 mΩ
Thermal Resistance: Flame retardant per UL 1581 VW1 / CSA FT1
Environmental & Regulatory Compliance:
Enclosure Rating: IP65 / IP66K / IP67 (resistant to dust, water jets, and temporary immersion)
Operating Temperature:
Flexible Use: –5 °C to +80 °C
Stationary Use: –30 °C to +80 °C
Connector Head: –25 °C to +85 °C
Contamination Rating: 3
Application Areas:
✔ Chemical Zones (resistant to harsh industrial environments)
✔ Uncontaminated Zones (suitable for cleanroom applications)
Certifications & Approvals:
UL Certified
UL File No.: E335179
Key Features & Benefits:
✔ Reliable signal transmission with shielding for EMI protection
✔ Rugged and flexible for industrial automation and control
✔ Secure M12 connection for stable and durable connectivity
✔ Wide temperature and environmental resistance for industrial and chemical applications
✔ Compliant with safety and regulatory standards (UL, IP67, flame retardant)

This industrial-grade M12 sensor/actuator cable is engineered for precision, durability, and high-performance connectivity, making it ideal for demanding automation environments.. This product is designed for optimal performance and reliability. Ideal for various applications, it features high-quality materials and advanced technology. Perfect for professionals seeking efficiency and durability.
